How can I get a price quote for ABB 2CSR275480R3064?

You can request a fast quote for ABB 2CSR275480R3064 from Yılsa Engineering. Reference part number YLSJUY2ONI2VRJM. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CSR275480R3064 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CSR275480R3064 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CSR275480R3064?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

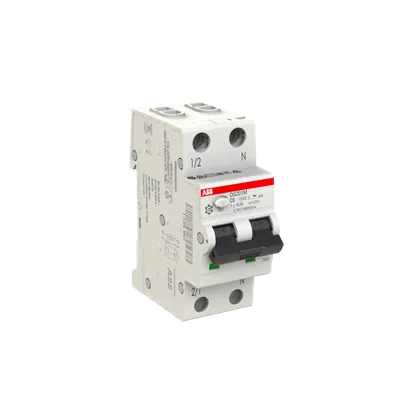

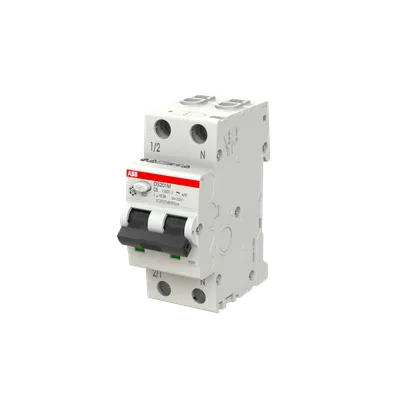

ABB 2CSR275480R3064

The DS201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts. The APR type provides an optimal trade-off between safety and continuity of service, thanks to the resistance to unwanted trippings, offering good protection and isolation of resistive and inductive loads.

ABBMFR # 2CSR275480R3064SKU # YLSJUY2ONI2VRJM

Extended Product TypeDS201 M C6 APR300

Type of Residual CurrentType A APR

Test Voltage (Ut)Minimum 110 V, Maximum 264 V

Dielectric Test Voltage2 kV

Maximum Surge Current3 kA

Power Supply ConnectionArbitrary

Have questions?Chat on WhatsApp

About This Product

ABB 2CSR275480R3064

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDS201 M C6 APR300

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 98 %, Recycled Paper - 00 %, Chemically Recycled Polymer - 00 %

Type of Residual CurrentType A APR

Test Voltage (Ut)Minimum 110 V, Maximum 264 V

Dielectric Test Voltage2 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)15 kA

Rated Residual Breaking Capacity (IΔm)EN 61009-1 6000 A, IEC 61009-1 6000 A

Rated Service Short-Circuit Breaking Capacity (Ics)11.2 kA

Maximum Surge Current3 kA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail2

Fault IndicationBlue Flag on Toggle

Position of Neutral TerminalsRight

Tightening Torque2.8 N·m

Accessory TypeAuxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device

Actuator TypeToggle - Insulation group II, Black RAL 9005, sealable in ON-OFF positions

Housing TypeInsulation group I - II, RAL 7035

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Accessories AvailableYes

Surge Immunity acc. to IEC 61000-4-53000 A

Connecting CapacityBusbar 10 ... 10 mm², Stranded 0.75 ... 25 mm², Flexible with Ferrule 0.75 ... 16 mm², Flexible 0.75 ... 16 mm²

Wire Stripping Length12 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 240 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC
