How can I get a price quote for ABB 2CSR275475R2404?

You can request a fast quote for ABB 2CSR275475R2404 from Yılsa Engineering. Reference part number YLSRFL5IYUABV7G. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CSR275475R2404 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CSR275475R2404 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CSR275475R2404?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

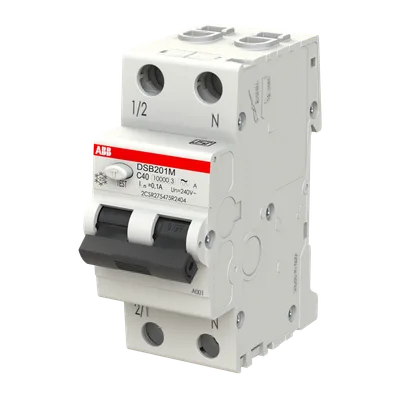

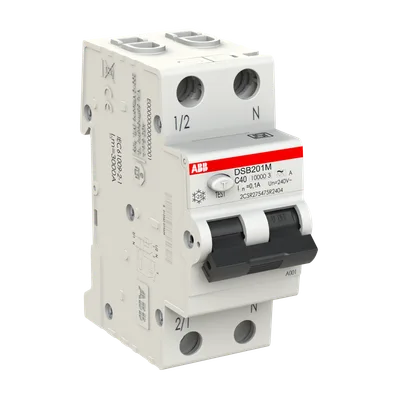

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSR275475R2404

DSB201 M A-C40/0.1 - Residual Current Circuit Breaker with Overcurrent Protection

ABBMFR # 2CSR275475R2404SKU # YLSRFL5IYUABV7G

Extended Product TypeDSB201 M A-C40/0.1

Type of Residual CurrentType A

Dielectric Test Voltage2 kV

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Have questions?Chat on WhatsApp

About This Product

DSB201 M A-C40/0.1 - Residual Current Circuit Breaker with Overcurrent Protection

ABB 2CSR275475R2404

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDSB201 M A-C40/0.1

Type of Residual CurrentType A

Dielectric Test Voltage2 kV

Rated Service Short-Circuit Breaking Capacity (Ics)7.5 kA

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail2

Tightening Torque2.8 N·m

Accessory TypeALL

Actuator TypeInsulation group II, Black RAL 9005, sealable in ON-OFF positions

Housing TypeInsulation group I - II, RAL 7035

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Accessories AvailableYes

Connecting Capacity25/25 mm²

Wire Stripping Length12 mm

Rated Operational Voltage240 V

Operational Voltage110 V

Rated Insulation Voltage (Ui)500 V AC

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)40 A

Rated Residual Current100 mA

Rated Short-Circuit Capacity10 kA

Rated Frequency (f)50 Hz

Overvoltage CategoryIII

Number of Modules2

Ambient Air Temperature-25…+55 °C

Degree of ProtectionHousing IP40, Terminals IP20

Pollution Degree2

Resistance to Vibrations20 Cycles with Load 0.8 In: 1g or 1mm 5…150…5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms

Built-In Depth (t2)69 mm

Mounting TypeDIN-Rail

Mounting PositionAny

StandardsIS 12640-2, IEC 61009-1

Documents & CAD

Documents 1

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English
