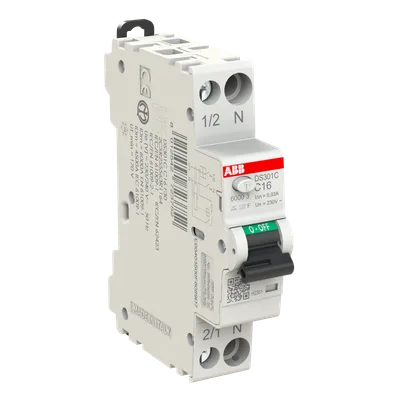

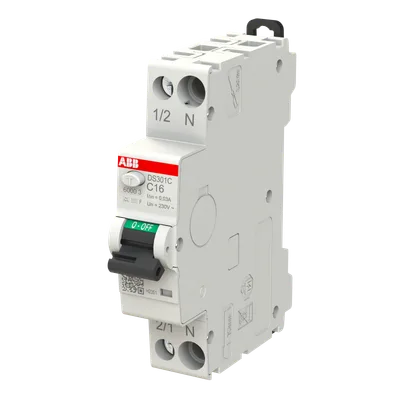

ABB 2CSR255563R1164
The DS301C series is a 1P+N RCBO in one module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA)
Extended Product TypeDS301C C16 F30
Type of Residual CurrentType F
Test Voltage (Ut)170 … 264 V
Dielectric Test Voltage2.5 kV
Primary Rated Impulse Withstand Voltage4 kV
Rated Current Sensitivity0.03 A
About This Product
The DS301C series is a 1P+N RCBO in one module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA)
ABB 2CSR255563R1164
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDS301C C16 F30
Material Resource Reduction (wt. %)Design for Reduced Resource Consumption - 45 %
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 71.18 %, Recycled Paper - 0 %
Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Type of Residual CurrentType F
Test Voltage (Ut)170 … 264 V
Dielectric Test Voltage2.5 kV
Primary Rated Impulse Withstand Voltage4 kV
Rated Current Sensitivity0.03 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)6 kA
Rated Service Short-Circuit Breaking Capacity (Ics)6 kA
Leakage Current TypeF
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance7000 cycle
Mechanical Endurance7000 cycle
Number of Protected Poles1
Number of Poles1P+N
Number of Modular Spacings per DIN Rail1
Fault IndicationBlue Flag Below Toggle
Position of Neutral TerminalsRight
Tightening Torque1.2 N·m
Actuator TypeToggle - Insulation group II, Black RAL 9005, sealable in ON-OFF positions
Housing TypeInsulation group I - II, RAL 7035
Release TypeC
Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal
Options ProvidedScrewless ( Please check equivalent DSX301C )
Accessories AvailableNo
Cable Size16 mm²
Connecting CapacityBusbar 10/10 mm², Rigid 1.5 … 16 mm², Flexible 1.5 … 16 mm²
Wire Stripping Length10 mm
Terminal TypeScrew Terminals
Frequency Range (frange)Residual Current 1 ... 1000 Hz
Rated Voltage (Ur)230 V
Rated Operational Voltage230 / 240 V AC
Rated Insulation Voltage (Ui)500 V
Rated Current (In)16 A
Rated Residual Current30 mA
Rated Short-Circuit Capacity6 kA
Rated Frequency (f)50 Hz
Power LossAverage per Pole 1.415 W, Phase Pole 2.11 W, Neutral Pole 0.72 W, Total 2.83 W
Overvoltage CategoryIII
Ambient Temperature-25 ... 55 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionTerminals IP20, Housing IP40
Pollution Degree2
Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations20 Cycles with Load 0.8 In: 1g or 1mm 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-2725g / 2 shocks / 13 ms
Width in Number of Modular Spacings1
Mounting TypeDIN-Rail
Mounting PositionAny
StandardsIEC 61009-1, IEC 61009-2-1, DIN EN 62423
