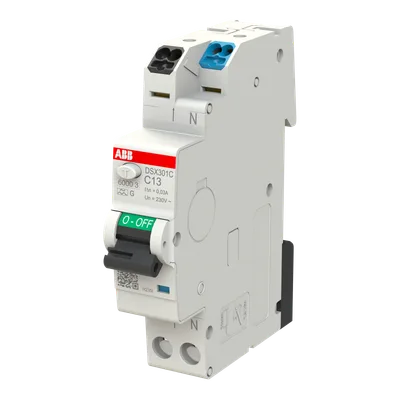

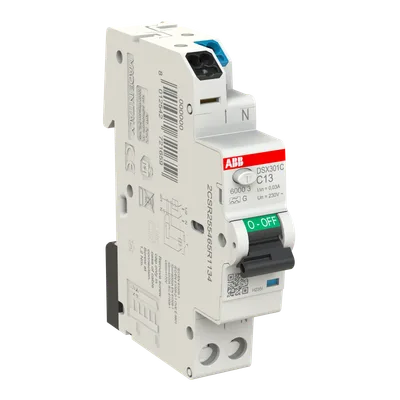

ABB 2CSR255465R1134

The DSX301C series is a 1P+N RCBO in one module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA)

ABBMFR # 2CSR255465R1134SKU # YLSNTBERRX673RX

Extended Product TypeDSX301C C13 G30

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType G

Test Voltage (Ut)170 … 264 V

Dielectric Test Voltage2.5 kV

Primary Rated Impulse Withstand Voltage4 kV

Have questions?Chat on WhatsApp

About This Product

ABB 2CSR255465R1134

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDSX301C C13 G30

Material Resource Reduction (wt. %)Design for Reduced Resource Consumption - 45 %

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 71.18 %, Recycled Paper - 0 %

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType G

Test Voltage (Ut)170 … 264 V

Dielectric Test Voltage2.5 kV

Primary Rated Impulse Withstand Voltage4 kV

Rated Current Sensitivity0.03 A

Rated Residual Operating Current (IΔn)6000 A

Rated Ultimate Short-Circuit Breaking Capacity (Icu)6 kA

Rated Service Short-Circuit Breaking Capacity (Ics)6 kA

Leakage Current TypeG

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance7000 cycle

Mechanical Endurance7000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail1

Fault IndicationBlue Flag Below Toggle

Position of Neutral TerminalsRight

Tightening Torque1.2 N·m

Actuator TypeToggle - Insulation group II, Black RAL 9005, sealable in ON-OFF positions

Housing TypeInsulation group I - II, RAL 7035

Release TypeC

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Options ProvidedScrewless

Accessories AvailableNo

Cable Size16 mm²

Connecting CapacityBusbar 10/10 mm², Rigid 1.5 … 16 mm², Flexible 1.5 … 16 mm²

Wire Stripping Length10 mm

Terminal TypeScrew Terminals

Rated Voltage (Ur)230 V

Rated Operational Voltage230 / 240 V AC

Rated Insulation Voltage (Ui)500 V

Rated Current (In)13 A

Rated Residual Current30 mA

Rated Short-Circuit Capacity6 kA

Rated Frequency (f)50 Hz

Power LossAverage per Pole 1.235 W, Phase Pole 2.12 W, Neutral Pole 0.35 W, Total 2.47 W

Overvoltage CategoryIII

Ambient Temperature-25 ... 55 °C

Ambient Air Temperature-25 ... 55 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionTerminals IP20, Housing IP40

Pollution Degree2

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 1g or 1mm 5 … 150 … 5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g / 2 shocks / 13 ms

Width in Number of Modular Spacings1

Mounting TypeDIN-Rail

Mounting PositionAny

StandardsIEC 61009-1, IEC 61009-2-1

Documents & CAD

Documents 14

CertificatePEP ecopassport DS301CM, DS301C & DSX301CPDF·207 KB·English

DatasheetDS301C Technical DatasheetPDF·3.0 MB·English

CertificateEcosolution Product Profile DS301CPDF·159 KB·English

CertificateDS301C A Type 100mA 300mA VDE Certificate 40055157PDF·476 KB·English

CertificateDS301C A Type 100mA 300mA VDE Certificate 40055157 supplementPDF·601 KB·English

CertificateCCC Certificate,Residual Current Operated Circuit-breakers With Integral Overcurrent Protection,DS301C,DS301CL,DS301CT,Made in ItalyPDF·3.0 MB·English

CertificateNF LCIE DS301CPDF·491 KB·English

CertificateDS301C CCCPDF·1.1 MB·English

CertificateDS301C Type A VDE ApprovalPDF·1.0 MB·English

CertificateCEBEC DS301CPDF·4.1 MB·English

CertificateOVE DS301CPDF·250 KB·English

CertificateRCM DS301CPDF·348 KB·English

Technical DrawingABB RCBO DS301C 2D.pdfPDF·1.4 MB·English

Instruction ManualABB RCBO DS301C instruction sheet.PDF·2.2 MB·English

CAD Files 1

3D Model

STEP.stp · 17.7 MB
