How can I get a price quote for ABB 2CSR255190R1104?

You can request a fast quote for ABB 2CSR255190R1104 from Yılsa Engineering. Reference part number YLSUICPLJYWY6B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CSR255190R1104 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CSR255190R1104 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CSR255190R1104?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

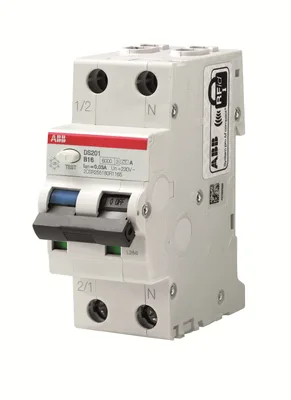

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

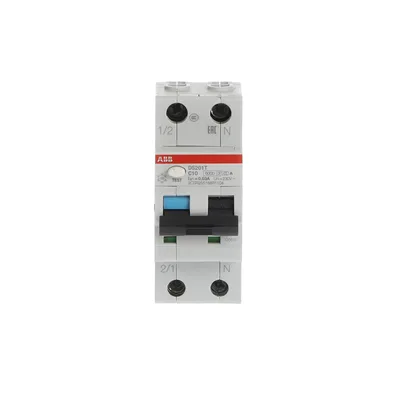

ABB 2CSR255190R1104

protection against indirect contacts and additional protection against direct contacts. This product is suitable for 240 rated voltage applications. This product is suitable for traction applications.

ABBMFR # 2CSR255190R1104SKU # YLSUICPLJYWY6B

Extended Product TypeDS201T C10 A30 240V

Type of Residual CurrentType A

ApplicationTraction

Dielectric Test Voltage2 kV

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Have questions?Chat on WhatsApp

About This Product

ABB 2CSR255190R1104

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDS201T C10 A30 240V

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 98 %, Recycled Paper - 00 %, Chemically Recycled Polymer - 00 %

Type of Residual CurrentType A

ApplicationTraction

Dielectric Test Voltage2 kV

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail2

Fault IndicationBlue Flag on Toggle

Position of Neutral TerminalsRight

Accessory TypeAuxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device

Accessories AvailableYes

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)10 A

Rated Residual Current30 mA

Rated Frequency (f)50 / 60 Hz

Power LossAverage per Pole 1.2 W, Phase Pole 1.8 W, Neutral Pole 0.5 W, Total 2.3 W

Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C

Pollution Degree2

Built-In Depth (t2)69 mm

Mounting TypeDIN-Rail

Mounting PositionAny
