How can I get a price quote for ABB 2CSR255188R1204?

You can request a fast quote for ABB 2CSR255188R1204 from Yılsa Engineering. Reference part number YLSKXFMRN0CCCNB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CSR255188R1204 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CSR255188R1204 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CSR255188R1204?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

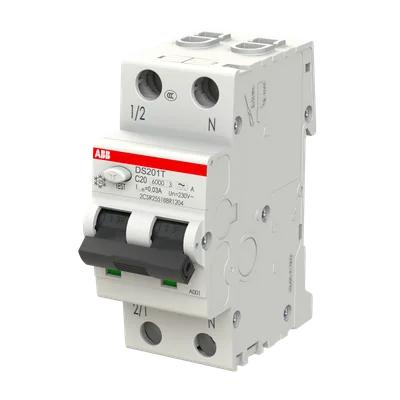

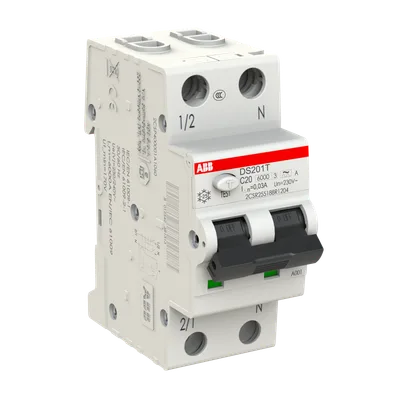

ABB 2CSR255188R1204

The DS201T series RCBO is a 1P+N in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents protection against the effects of sinusoidal alternating earth fault currents protection against indirect contacts and additional protection against direct contacts. DS201T meets the demand of a device suitable for installation in rolling stock equipment.

ABBMFR # 2CSR255188R1204SKU # YLSKXFMRN0CCCNB

Extended Product TypeDS201T C20 A30

Type of Residual CurrentType A

ApplicationTraction

Test Voltage (Ut)Minimum 170 V, Maximum 264 V

Dielectric Test Voltage2 kV

Power Supply ConnectionArbitrary

Have questions?Chat on WhatsApp

About This Product

ABB 2CSR255188R1204

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDS201T C20 A30

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 98 %, Recycled Paper - 00 %, Chemically Recycled Polymer - 00 %

Type of Residual CurrentType A

ApplicationTraction

Test Voltage (Ut)Minimum 170 V, Maximum 264 V

Dielectric Test Voltage2 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)10 kA

Rated Residual Breaking Capacity (IΔm)EN 61009-1 6000 A, IEC 61009-1 6000 A

Rated Service Short-Circuit Breaking Capacity (Ics)7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)6 kA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail2

Fault IndicationBlue Flag on Toggle

Position of Neutral TerminalsRight

Tightening Torque2.8 N·m

Accessory TypeAuxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device

Actuator TypeToggle - Insulation group II, Black RAL 9005, sealable in ON-OFF positions

Earthing Switch TypeUndelayed

Housing TypeInsulation group I - II, RAL 7035

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Options ProvidedSuitable for traction applications

Accessories AvailableYes

Connecting CapacityBusbar 10 ... 10 mm², Stranded 0.75 ... 25 mm², Flexible with Ferrule 0.75 ... 16 mm², Flexible 0.75 ... 16 mm²

Rated Cross-Section1 - Solid-Core 0.75 … 25 mm², 4 - Multi-Wired 0.75 … 16 mm²

Wire Stripping Length12 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 230 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
