How can I get a price quote for ABB 2CSR255187R1405?

You can request a fast quote for ABB 2CSR255187R1405 from Yılsa Engineering. Reference part number YLSNABNAUTHLA7A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CSR255187R1405 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CSR255187R1405 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CSR255187R1405?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

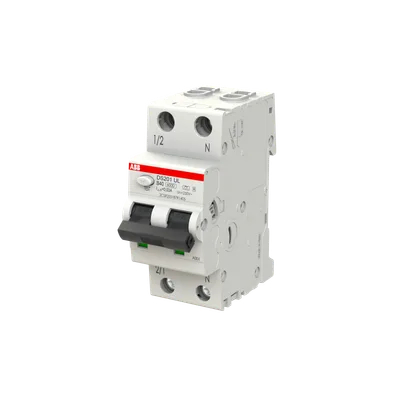

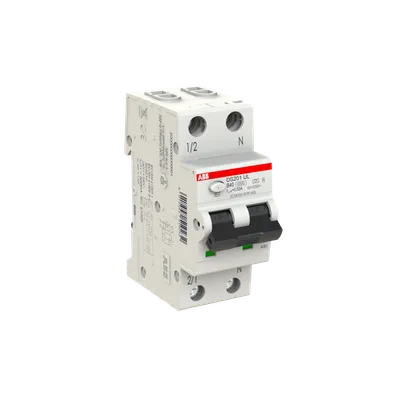

ABB 2CSR255187R1405

DS201 B40 A30 UL Residual Current Circuit Breaker with Overcurrent Protection

ABBMFR # 2CSR255187R1405SKU # YLSNABNAUTHLA7A

Extended Product TypeDS201 B40 A30 UL

Type of Residual CurrentType A

Test Voltage (Ut)Minimum 110 V, Maximum 277 V

Dielectric Test Voltage2 kV

Rated Current Sensitivity0.03 A

Power Supply ConnectionArbitrary

Have questions?Chat on WhatsApp

About This Product

DS201 B40 A30 UL Residual Current Circuit Breaker with Overcurrent Protection

ABB 2CSR255187R1405

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDS201 B40 A30 UL

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 98 %, Recycled Paper - 00 %, Chemically Recycled Polymer - 00 %

Type of Residual CurrentType A

Test Voltage (Ut)Minimum 110 V, Maximum 277 V

Dielectric Test Voltage2 kV

Rated Current Sensitivity0.03 A

Rated Residual Operating Current (IΔn)6000 A

Rated Ultimate Short-Circuit Breaking Capacity (Icu)6 kA

Rated Service Short-Circuit Breaking Capacity (Ics)7.5 kA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail2

Fault IndicationBlue Flag on Toggle

Position of Neutral TerminalsRight

Tightening Torque2.8 N·m

Accessory TypeAuxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Accessories AvailableYes

Connecting CapacityBusbar 10/10 mm², Rigid 25 ... 25 mm², Flexible 25 ... 25 mm²

Wire Stripping Length12 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 240 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)40 A

Rated Residual Current30 mA

Rated Short-Circuit Capacity6 kA
