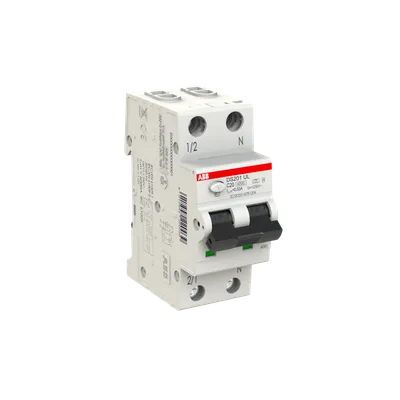

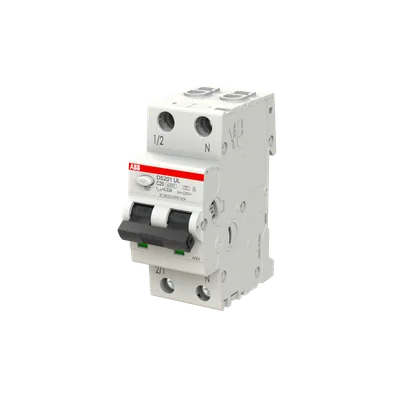

ABB 2CSR255187R1204

DS201 UL 1P+N RCBO is a device that in two modules width is able to provide complete protection against overcurrent (overload and shortcircuit) and earth fault. DS201 UL are approved according to UL 1053 standard “Ground- Fault Sensing and Relaying Equipment” and UL 1077 "standard for Supplementary Protectors for Use in Electrical Equipment, making them suitable for installation in equipments/ machines addressed to North American market.

ABBMFR # 2CSR255187R1204SKU # YLSIFR0XEIVKOCP

Extended Product TypeDS201 C20 A30 UL

Type of Residual CurrentType A

Test Voltage (Ut)Minimum 110 V, Maximum 277 V

Dielectric Test Voltage2 kV

Rated Current Sensitivity0.03 A

Power Supply ConnectionArbitrary

Have questions?Chat on WhatsApp

About This Product

ABB 2CSR255187R1204

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDS201 C20 A30 UL

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 98 %, Recycled Paper - 00 %, Chemically Recycled Polymer - 00 %

Type of Residual CurrentType A

Test Voltage (Ut)Minimum 110 V, Maximum 277 V

Dielectric Test Voltage2 kV

Rated Current Sensitivity0.03 A

Rated Ultimate Short-Circuit Breaking Capacity (Icu)6 kA

Rated Service Short-Circuit Breaking Capacity (Ics)7.5 kA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail2

Fault IndicationBlue Flag on Toggle

Position of Neutral TerminalsRight

Tightening Torque2.8 N·m

Accessory TypeAuxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Accessories AvailableYes

Connecting CapacityBusbar 10 ... 10 mm², Rigid 25 ... 25 mm², Flexible 25 ... 25 mm²

Wire Stripping Length12 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 240 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)20 A

Rated Residual Current30 mA

Rated Short-Circuit Capacity6 kA
