How can I get a price quote for ABB 2CSR255170R1164?

You can request a fast quote for ABB 2CSR255170R1164 from Yılsa Engineering. Reference part number YLSCPYFAIZDE6OS. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CSR255170R1164 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CSR255170R1164 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CSR255170R1164?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

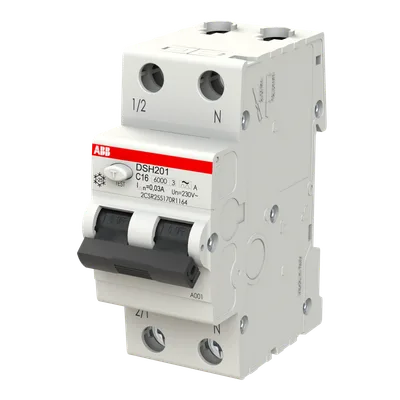

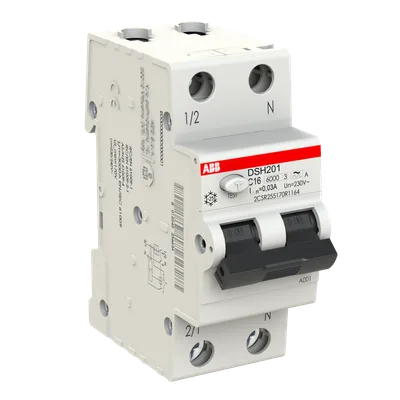

ABB 2CSR255170R1164

protection against indirect contacts and additional protection against direct contacts.

ABBMFR # 2CSR255170R1164SKU # YLSCPYFAIZDE6OS

Extended Product TypeDSH201 C16 A30

Type of Residual CurrentType A

Test Voltage (Ut)Minimum 170 V, Maximum 254 V

Dielectric Test Voltage2 kV

Power Supply ConnectionArbitrary

Energy Limiting Class3

Have questions?Chat on WhatsApp

About This Product

protection against indirect contacts and additional protection against direct contacts.

ABB 2CSR255170R1164

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDSH201 C16 A30

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 98 %, Recycled Paper - 00 %, Chemically Recycled Polymer - 00 %

Type of Residual CurrentType A

Test Voltage (Ut)Minimum 170 V, Maximum 254 V

Dielectric Test Voltage2 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)7.5 kA

Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)6 kA

Power Supply ConnectionArbitrary

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail2

Position of Neutral TerminalsRight

Earthing Switch TypeUndelayed

Accessories AvailableNo

Connecting CapacityBusbar 10 mm², Rigid 25 ... 25 mm², Flexible 25 ... 25 mm²

Rated Cross-Section1 - Solid-Core 0.75 … 25 mm², 4 - Multi-Wired 0.75 … 16 mm²

Rated Operational Voltageacc. to IEC 60898-1 230 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)16 A

Rated Residual Current30 mA

Rated Short-Circuit Capacity6 kA

Rated Frequency (f)50 Hz

Power LossAverage per Pole 2.3 W, Phase Pole 3.4 W, Neutral Pole 1.2 W, Total 4.5 W

Overvoltage CategoryIII

Ambient Air TemperatureOperation -25 … 55 °C

Degree of ProtectionIP20

Pollution Degree2

Width in Number of Modular Spacings2

Built-In Depth (t2)69 mm

Mounting TypeDIN-Rail

Mounting PositionAny

StandardsIEC 61009-1, EN 61009-1, IEC 61009-2-1, EN 61009-2-1

Documents & CAD

Documents 1

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English
