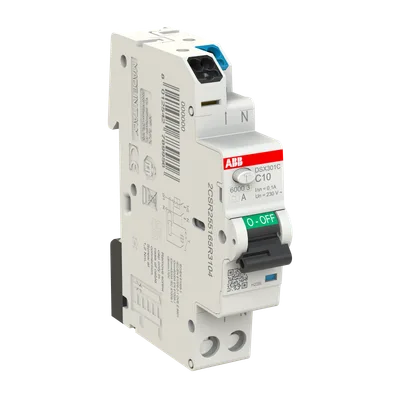

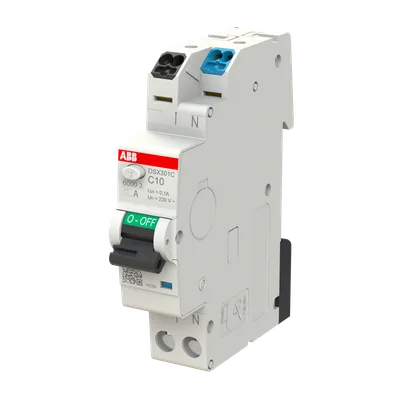

ABB 2CSR255165R3104

The DS301C series is a 1P+N RCBO in one module width for the protection of end user single-phase circuits against overload and short-circuit currents, protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection against indirect contacts and additional protection against direct contacts. DSX301C is part of the FlexLine portfolio.

ABBMFR # 2CSR255165R3104SKU # YLSBWSJPZEP2TXF

Extended Product TypeDSX301C C10 A300

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType A

Test Voltage (Ut)191 … 264 V

Dielectric Test Voltage2.5 kV

Primary Rated Impulse Withstand Voltage4 kV

Have questions?Chat on WhatsApp

About This Product

ABB 2CSR255165R3104

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDSX301C C10 A300

Material Resource Reduction (wt. %)Design for Reduced Resource Consumption - 45 %

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 71.18 %, Recycled Paper - 0 %

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType A

Test Voltage (Ut)191 … 264 V

Dielectric Test Voltage2.5 kV

Primary Rated Impulse Withstand Voltage4 kV

Rated Current Sensitivity0.3 A

Rated Residual Operating Current (IΔn)6000 A

Rated Ultimate Short-Circuit Breaking Capacity (Icu)6 kA

Rated Service Short-Circuit Breaking Capacity (Ics)6 kA

Leakage Current TypeA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail1

Fault IndicationBlue Flag Below Toggle

Position of Neutral TerminalsRight

Tightening Torque1.2 N·m

Housing TypeInsulation group I - II, RAL 7056

Release TypeC

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Options ProvidedScrewless

Accessories AvailableYes

Cable Size16 mm²

Connecting CapacityBusbar 10/10 mm², Rigid 1.5 … 16 mm², Flexible 1.5 … 16 mm²

Wire Stripping Length10 mm

Terminal TypeScrew Terminals

Rated Voltage (Ur)230 V

Rated Operational Voltage230 / 240 V AC

Rated Insulation Voltage (Ui)500 V

Rated Current (In)10 A

Rated Residual Current300 mA

Rated Short-Circuit Capacity6 kA

Rated Frequency (f)50 Hz

Power LossAverage per Pole 1.1 W, Phase Pole 2.1 W, Neutral Pole 0.1 W, Total 2.2 W

Overvoltage CategoryIII

Ambient Air Temperature-25 ... 55 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionTerminals IP20, Housing IP40

Pollution Degree2

Environmental Conditions49 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 1g 5…150…5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g / 2 shocks / 13 ms

Width in Number of Modular Spacings1

Mounting TypeDIN-Rail

Mounting PositionAny

StandardsIEC 61009-1, IEC 61009-2-1

Documents & CAD

Documents 8

CertificatePEP ecopassport DS301CM, DS301C & DSX301CPDF·207 KB·English

CertificateDS301C A Type 100mA 300mA VDE Certificate 40055157PDF·476 KB·English

CertificateDS301C A Type 100mA 300mA VDE Certificate 40055157 supplementPDF·601 KB·English

CertificateDSX301C End of Life instructionPDF·513 KB·English

CertificateVDE certificate DSX301CPDF·324 KB·English

Instruction ManualDSX301C instructionPDF·20.2 MB·English

Instruction ManualFlexLine® mounting instructionPDF·67 KB·English

2D DrawingDSX301C dimensional drawingPDF·75 KB·English

CAD Files 1

3D Model

STEP.stp · 387 KB
