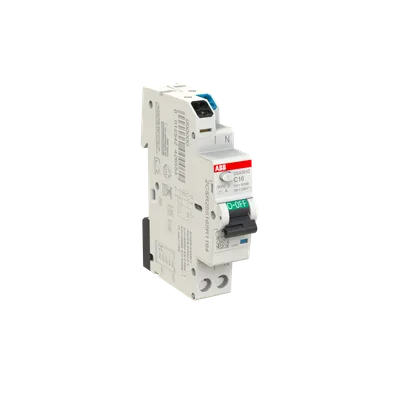

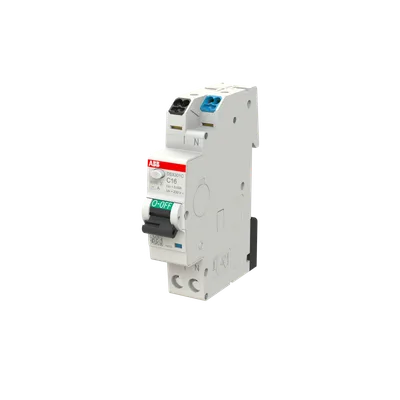

ABB 2CSR255165R1164

The DS301C series is a 1P+N RCBO in one module width for the protection of end user single-phase circuits against overload and short-circuit currents, protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection against indirect contacts and additional protection against direct contacts. DSX301C is part of the FlexLine portfolio.

ABBMFR # 2CSR255165R1164SKU # YLSXKENEZR6PYUJ

Extended Product TypeDSX301C C16 A30

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType A

Test Voltage (Ut)170 ... 264 V

Dielectric Test Voltage2.5 kV

Power Supply ConnectionBottom

Have questions?Chat on WhatsApp

About This Product

ABB 2CSR255165R1164

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDSX301C C16 A30

Material Resource Reduction (wt. %)Design for Reduced Resource Consumption - 45 %

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 71.18 %, Recycled Paper - 0 %

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType A

Test Voltage (Ut)170 ... 264 V

Dielectric Test Voltage2.5 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)6 kA

Rated Residual Breaking Capacity (IΔm)EN 61009-1 6000 A, IEC 61009-1 4500 A

Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %

Power Supply ConnectionBottom

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance7000 cycle

Mechanical Endurance7000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail1

Fault IndicationBlue Flag Below Toggle

Position of Neutral TerminalsRight

Tightening Torque1.2 N·m

Actuator TypeToggle - Insulation group II, Black RAL 9005, sealable in ON-OFF positions

Earthing Switch TypeUndelayed

Housing TypeInsulation group I - II, RAL 7035

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Actuator MarkingI / O

Options ProvidedScrewless

Accessories AvailableNo

Connecting CapacityScrew Clamp / Rigid 1 … 10 mm², Screw Clamp / With Insulated Ferrrule 1 … 6 mm², Screw Clamp / Without Insulated Ferrule 1 … 6 mm², Push-in / Flexible With Insulated Ferrule 2 x 1 … 2.5 mm², Push-in / Flexible Without Insulated Ferrule 2 x 1 … 2.5 mm², Push-in / Rigid 2 x 1 … 4 mm², Screw Clamp / Flexible 1 … 10 mm²

Wire Stripping Length10 mm

Terminal TypeScrew Terminals, Push-in Spring Terminals

Rated Operational Voltageacc. to IEC 60898-1 230 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)16 A

Rated Residual Current30 mA

Rated Short-Circuit Capacity6 kA

Rated Frequency (f)50 Hz

Power LossAverage per Pole 1.24 W, Phase Pole 1.84 W, Neutral Pole 0.64 W, Total 2.48 W

Overvoltage CategoryIII
