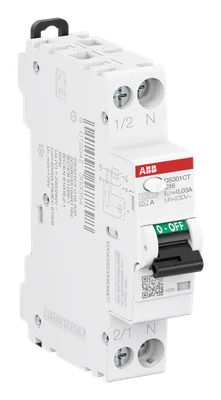

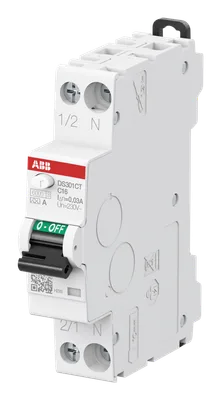

ABB 2CSR255164R1164
The DS301C series is a 1P+N RCBO in one module width for the protection of end user single-phase circuits against overload and short-circuit currents, protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection against indirect contacts and additional protection against direct contacts
Extended Product TypeDS301CT C16 A30
Type of Residual CurrentType A
Test Voltage (Ut)170 ... 264 V
Dielectric Test Voltage2.5 kV
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
About This Product
The DS301C series is a 1P+N RCBO in one module width for the protection of end user single-phase circuits against overload and short-circuit currents, protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection against indirect contacts and additional protection against direct contacts
ABB 2CSR255164R1164
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDS301CT C16 A30
Material Resource Reduction (wt. %)Design for Reduced Resource Consumption - 45 %
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 71.18 %, Recycled Paper - 0 %
Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Type of Residual CurrentType A
Test Voltage (Ut)170 ... 264 V
Dielectric Test Voltage2.5 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu)6 kA
Rated Residual Breaking Capacity (IΔm)EN 61009-1 6000 A, IEC 61009-1 4500 A
Rated Service Short-Circuit Breaking Capacity (Ics)6 kA
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance7000 cycle
Mechanical Endurance7000 cycle
Number of Protected Poles1
Number of Poles1P+N
Number of Modular Spacings per DIN Rail1
Fault IndicationBlue Flag Below Toggle
Position of Neutral TerminalsRight
Tightening Torque1.2 N·m
Accessory TypeBusbar Psc series, Padlock
Actuator TypeToggle - Insulation group II, Black RAL 9005, sealable in ON-OFF positions
Housing TypeInsulation group I - II, RAL 7035
Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal
Accessories AvailableNo
Connecting CapacityBusbar 10 ... 10 mm², Rigid 1.5 ... 16 mm², Flexible 1.5 ... 16 mm²
Rated Cross-Section1 - Solid-Core 1.5 … 16 mm², 4 - Multi-Wired 1.5 … 10 mm²
Wire Stripping Length10 mm
Terminal TypeScrew Terminals
Rated Operational Voltageacc. to IEC 60898-1 240 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)16 A
Rated Residual Current30 mA
Rated Short-Circuit Capacity6 kA
Rated Frequency (f)50 Hz
Power LossAverage per Pole 1.24 W, Phase Pole 1.84 W, Neutral Pole 0.64 W, Total 2.48 W
Overvoltage CategoryIII
Ambient Air TemperatureOperation -25 … 55 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionIP20, IP40
Pollution Degree2
Environmental Conditions28 cycles, |with 55 °C / 90-96 %, |and 25 °C / 95-100 %
Resistance to Vibrations20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms
Width in Number of Modular Spacings1
Built-In Depth (t2)17.6 mm
Mounting TypeDIN-Rail
Mounting PositionAny
StandardsIEC/EN 61009-1, IEC/EN 61009-2-1, EN 45545
