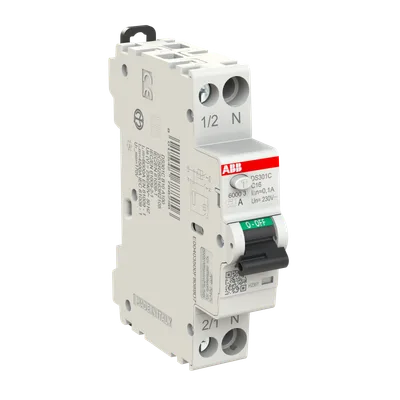

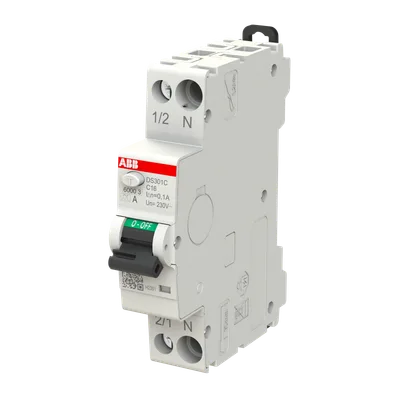

ABB 2CSR255163R2164
The DS301C series is a 1P+N RCBO in one module width for the protection of end user single-phase circuits against overload and short-circuit currents, protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection against indirect contacts and additional protection against direct contacts. DSX301C is part of the FlexLine portfolio.
Extended Product TypeDS301C C16 A100
Type of Residual CurrentType A
Test Voltage (Ut)174 … 264 V
Dielectric Test Voltage2.5 kV
Primary Rated Impulse Withstand Voltage4 kV
Rated Current Sensitivity0.1 A
About This Product
The DS301C series is a 1P+N RCBO in one module width for the protection of end user single-phase circuits against overload and short-circuit currents, protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection against indirect contacts and additional protection against direct contacts. DSX301C is part of the FlexLine portfolio.
ABB 2CSR255163R2164
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDS301C C16 A100
Material Resource Reduction (wt. %)Design for Reduced Resource Consumption - 45 %
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 71.18 %, Recycled Paper - 0 %
Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Type of Residual CurrentType A
Test Voltage (Ut)174 … 264 V
Dielectric Test Voltage2.5 kV
Primary Rated Impulse Withstand Voltage4 kV
Rated Current Sensitivity0.1 A
Rated Residual Operating Current (IΔn)6000 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)6 kA
Rated Service Short-Circuit Breaking Capacity (Ics)6 kA
Leakage Current TypeA
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles1
Number of Poles1P+N
Number of Modular Spacings per DIN Rail1
Fault IndicationBlue Flag Below Toggle
Position of Neutral TerminalsRight
Tightening Torque1.2 N·m
Housing TypeInsulation group I - II, RAL 7039
Release TypeC
Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal
Options ProvidedScrewless ( Please check equivalent DSX301C )
Accessories AvailableYes
Cable Size16 mm²
Connecting CapacityBusbar 10/10 mm², Rigid 1.5 … 16 mm², Flexible 1.5 … 16 mm²
Wire Stripping Length10 mm
Terminal TypeScrew Terminals
Rated Voltage (Ur)230 V
Rated Operational Voltage230 / 240 V AC
Rated Insulation Voltage (Ui)500 V
Rated Current (In)16 A
Rated Residual Current100 mA
Rated Short-Circuit Capacity6 kA
Rated Frequency (f)50 Hz
Power LossAverage per Pole 1.1 W, Phase Pole 2.1 W, Neutral Pole 0.1 W, Total 2.2 W
Overvoltage CategoryIII
Ambient Air Temperature-25 ... 55 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionTerminals IP20, Housing IP40
Pollution Degree2
Environmental Conditions32 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations20 Cycles with Load 0.8 In: 1g 5…150…5 Hz
Resistance to Shock acc. to IEC 60068-2-2725g / 2 shocks / 13 ms
Width in Number of Modular Spacings1
Mounting TypeDIN-Rail
Mounting PositionAny
StandardsIEC 61009-1, IEC 61009-2-1
