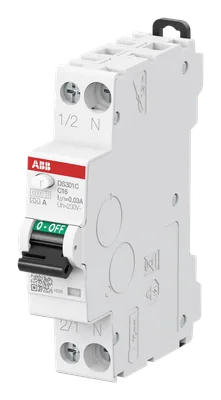

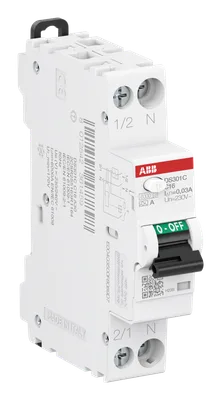

ABB 2CSR255163R1164

The DS301C series is a 1P+N RCBO in one module width for the protection of end user single-phase circuits against overload and short-circuit currents, protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection against indirect contacts and additional protection against direct contacts

ABBMFR # 2CSR255163R1164SKU # YLSUHZSCBI9TM8I

Extended Product TypeDS301C C16 A30

Type of Residual CurrentType A

Test Voltage (Ut)170 ... 264 V

Dielectric Test Voltage2.5 kV

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Have questions?Chat on WhatsApp

About This Product

ABB 2CSR255163R1164

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDS301C C16 A30

Material Resource Reduction (wt. %)Design for Reduced Resource Consumption - 45 %

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 71.18 %, Recycled Paper - 0 %

Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line

Type of Residual CurrentType A

Test Voltage (Ut)170 ... 264 V

Dielectric Test Voltage2.5 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)6 kA

Rated Residual Breaking Capacity (IΔm)EN 61009-1 6000 A, IEC 61009-1 4500 A

Rated Service Short-Circuit Breaking Capacity (Ics)6 kA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance7000 cycle

Mechanical Endurance7000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail1

Fault IndicationBlue Flag Below Toggle

Position of Neutral TerminalsRight

Tightening Torque1.2 N·m

Accessory TypeBusbar Psc series, Padlock

Actuator TypeToggle - Insulation group II, Black RAL 9005, sealable in ON-OFF positions

Housing TypeInsulation group I - II, RAL 7035

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Options ProvidedScrewless ( Please check equivalent DSX301C )

Accessories AvailableNo

Connecting CapacityBusbar 10 ... 10 mm², Rigid 1.5 ... 16 mm², Flexible 1.5 ... 16 mm²

Rated Cross-Section1 - Solid-Core 1.5 … 16 mm², 4 - Multi-Wired 1.5 … 10 mm²

Wire Stripping Length10 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 240 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)16 A

Rated Residual Current30 mA

Rated Short-Circuit Capacity6 kA

Rated Frequency (f)50 Hz

Power LossAverage per Pole 1.24 W, Phase Pole 1.84 W, Neutral Pole 0.64 W, Total 2.48 W

Overvoltage CategoryIII

Ambient Air TemperatureOperation -25 … 55 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionIP20, IP40

Pollution Degree2

Environmental Conditions28 cycles, |with 55 °C / 90-96 %, |and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms

Width in Number of Modular Spacings1

Built-In Depth (t2)17.6 mm

Mounting TypeDIN-Rail

Mounting PositionAny

StandardsIEC/EN 61009-1, IEC/EN 61009-2-1

Documents & CAD

Documents 11

DatasheetDS301C Technical DatasheetPDF·3.0 MB·English

CertificateEcosolution Product Profile DS301CPDF·159 KB·English

CertificateDS301C A Type 100mA 300mA VDE Certificate 40055157PDF·476 KB·English

CertificateDS301C A Type 100mA 300mA VDE Certificate 40055157 supplementPDF·601 KB·English

CertificateNF LCIE DS301CPDF·491 KB·English

CertificateDS301C Type A VDE ApprovalPDF·1.0 MB·English

CertificateCEBEC DS301CPDF·4.1 MB·English

CertificateOVE DS301CPDF·250 KB·English

CertificateRCM DS301CPDF·348 KB·English

Technical DrawingABB RCBO DS301C 2D.pdfPDF·1.4 MB·English

Instruction ManualABB RCBO DS301C instruction sheet.PDF·2.2 MB·English

CAD Files 1

3D Model

STEP.stp · 17.7 MB
