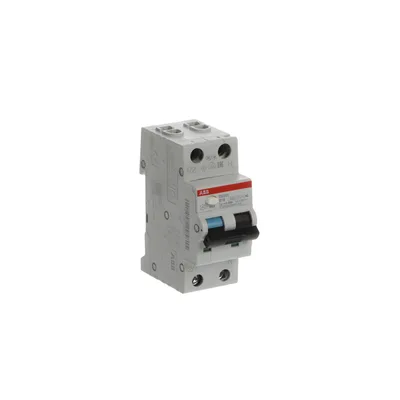

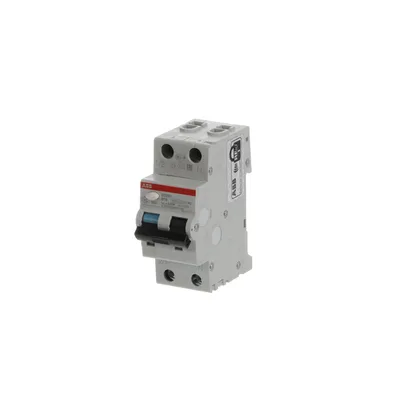

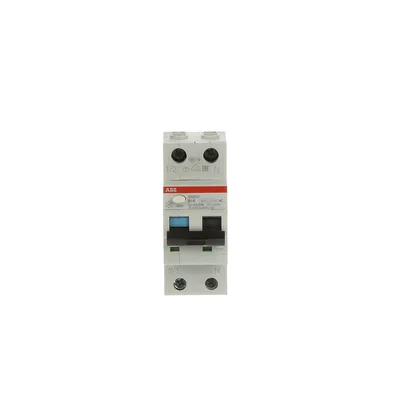

ABB 2CSR255080R1165

The DS201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts.

ABBMFR # 2CSR255080R1165SKU # YLSTIV6OEU4SOT9

Extended Product TypeDS201 B16 AC30

Type of Residual CurrentType AC

Test Voltage (Ut)Minimum 170 V, Maximum 264 V

Dielectric Test Voltage2 kV

Maximum Surge Current0 kA

Power Supply ConnectionArbitrary

Have questions?Chat on WhatsApp

About This Product

ABB 2CSR255080R1165

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDS201 B16 AC30

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 98 %, Recycled Paper - 00 %, Chemically Recycled Polymer - 00 %

Type of Residual CurrentType AC

Test Voltage (Ut)Minimum 170 V, Maximum 264 V

Dielectric Test Voltage2 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)10 kA

Rated Residual Breaking Capacity (IΔm)EN 61009-1 6000 A, IEC 61009-1 6000 A

Rated Service Short-Circuit Breaking Capacity (Ics)7.5 kA

Maximum Surge Current0 kA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail2

Fault IndicationBlue Flag on Toggle

Position of Neutral TerminalsRight

Tightening Torque2.8 N·m

Accessory TypeAuxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device

Actuator TypeToggle - Insulation group II, Black RAL 9005, sealable in ON-OFF positions

Housing TypeInsulation group I - II, RAL 7035

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Accessories AvailableYes

Connecting CapacityBusbar 10 ... 10 mm², Stranded 0.75 ... 25 mm², Flexible with Ferrule 0.75 ... 16 mm², Flexible 0.75 ... 16 mm²

Wire Stripping Length12 mm

Terminal TypeScrew Terminals

Rated Operational Voltageacc. to IEC 60898-1 240 V

Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)16 A
