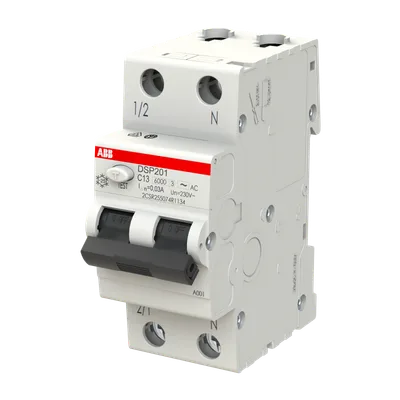

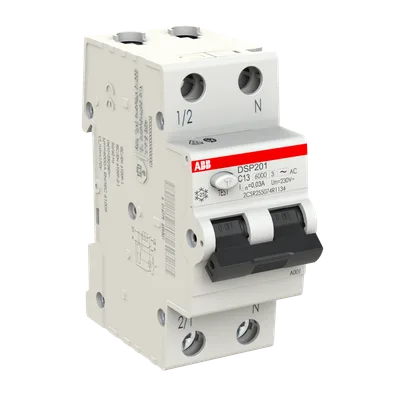

ABB 2CSR255074R1134
The DSP201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts.
Extended Product TypeDSP201 C13 AC30
Type of Residual CurrentType AC
Test Voltage (Ut)Minimum 170 V, Maximum 254 V
Dielectric Test Voltage2 kV
Power Supply ConnectionArbitrary
Energy Limiting Class3
About This Product
The DSP201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts.
ABB 2CSR255074R1134
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDSP201 C13 AC30
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 98 %, Recycled Paper - 00 %, Chemically Recycled Polymer - 00 %
Type of Residual CurrentType AC
Test Voltage (Ut)Minimum 170 V, Maximum 254 V
Dielectric Test Voltage2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu)7.5 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)6 kA
Power Supply ConnectionArbitrary
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles1
Number of Poles1P+N
Number of Modular Spacings per DIN Rail2
Position of Neutral TerminalsRight
Earthing Switch TypeUndelayed
Accessories AvailableYes
Connecting CapacityBusbar 10 mm², Rigid 25 ... 25 mm², Flexible 25 ... 25 mm²
Rated Cross-Section1 - Solid-Core 0.75 … 25 mm², 4 - Multi-Wired 0.75 … 16 mm²
Rated Operational Voltageacc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)13 A
Rated Residual Current30 mA
Rated Short-Circuit Capacity6 kA
Rated Frequency (f)50 / 60 Hz
Power LossAverage per Pole 1.7 W, Phase Pole 2.7 W, Neutral Pole 0.8 W, Total 3.5 W
Overvoltage CategoryIII
Ambient Air TemperatureOperation -25 … 55 °C
Degree of ProtectionIP20
Pollution Degree2
Width in Number of Modular Spacings2
Built-In Depth (t2)69 mm
Mounting TypeDIN-Rail
Mounting PositionAny
StandardsIEC 61009-1, IEC 61009-2-1, EN 61009-1, EN 61009-2-1
