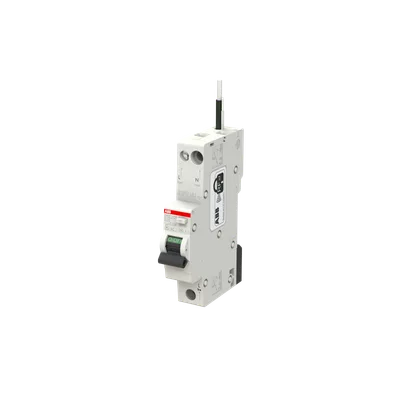

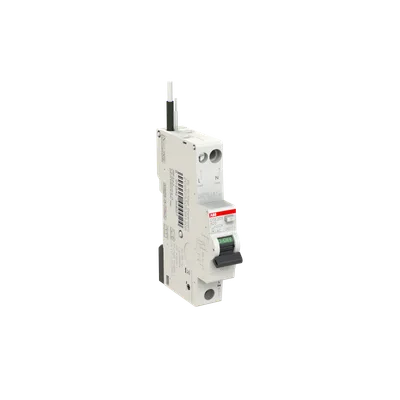

ABB 2CSR255053R1205
1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). Presence of neutral (blue or black) and functional earth (white) flying leads. The neutral is unswitched
Extended Product TypeDSE201 B20 AC30 - N Black
Type of Residual CurrentType AC
Maximum Operating Voltage264 V
Test Voltage (Ut)195 … 264 V
Dielectric Test Voltage2 kV
Maximum Surge Current0.25 kA
About This Product
1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). Presence of neutral (blue or black) and functional earth (white) flying leads. The neutral is unswitched
ABB 2CSR255053R1205
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDSE201 B20 AC30 - N Black
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 98 %
Type of Residual CurrentType AC
Maximum Operating Voltage264 V
Test Voltage (Ut)195 … 264 V
Dielectric Test Voltage2 kV
Rated Residual Breaking Capacity (IΔm)6 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)6 kA
Maximum Surge Current0.25 kA
Power Supply ConnectionBottom
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles1
Number of Poles1P
Number of Modular Spacings per DIN Rail1
Position of Neutral TerminalsRight
Tightening TorqueTop 1.2 N·m, Bottom 2.8 N·m
Actuator TypeToggle - Insulation group IIIA, black, sealable in ON-OFF positions
Earthing Switch TypeUndelayed
Housing TypeInsulation group II, RAL 7035
Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal
Accessories AvailableNo
Connecting CapacityBusbar 10 mm², Rigid 1…25 mm², Flexible 1…16 mm²
Rated Cross-Section4 - Multi-Wired 1...25 mm², 1 - Solid-Core 25...25 mm²
Wire Stripping LengthTop 11 mm, Bottom 12.5 mm
Terminal TypeScrew Terminals
Short-Circuit Current Rating (SCCR)0.03 A
Rated Operational Voltage230 / 240 V AC
Rated Insulation Voltage (Ui)500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)20 A
Rated Residual Current30 mA
Rated Short-Circuit Capacity6 kA
Rated Conditional Short-Circuit Current (Inc)6 kA
Rated Frequency (f)50 … 60 Hz
Power LossTotal 5.5 W
Overvoltage CategoryIII
Ambient Air TemperatureOperation -25 ... 55 °C, Storage -40 ... 70 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionTerminals IP20, Housing IP40
Pollution Degree2
Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 Hz
Resistance to Shock acc. to IEC 60068-2-2730g / 2 shocks / 13 ms
Width in Number of Modular Spacings1
Built-In Depth (t2)68.9 mm
Mounting TypeDIN-Rail
Mounting PositionAny
StandardsIEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
