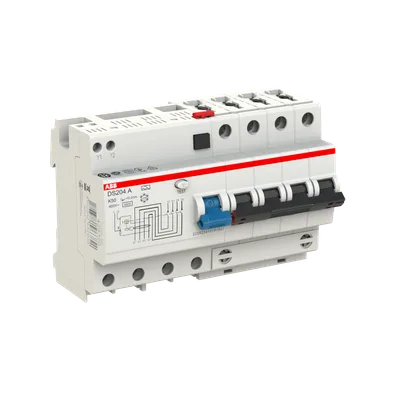

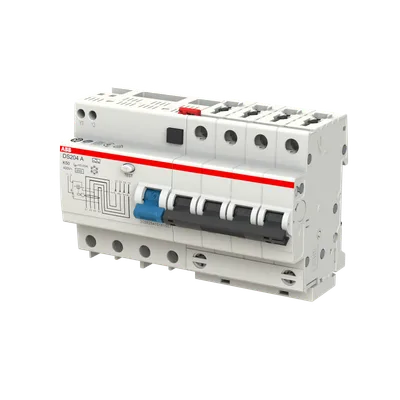

ABB 2CSR254101R1507
The RCBOs DS200 series has the function to protect against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection aganist direct contacts.
Extended Product TypeDS204 A-K50/0.03
Type of Residual CurrentType A
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
Number of Protected Poles4
Number of Poles4P
About This Product
The RCBOs DS200 series has the function to protect against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection aganist direct contacts.
ABB 2CSR254101R1507
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDS204 A-K50/0.03
Type of Residual CurrentType A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 10 kA
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
Number of Protected Poles4
Number of Poles4P
Number of Earth Leakage Circuit Breakers (ELCBs)1
Position of Neutral TerminalsRight, Left
Release TypeK
Accessories AvailableYes
Connecting CapacityBusbar 10 mm², Rigid 25 ... 25 mm², Flexible 25 ... 25 mm²
Short-Circuit Current Rating (SCCR)30 mA
Rated Voltage (Ur)400 V AC
Rated Operational Voltage400 V AC
Rated Current (In)50 A
Rated Residual Current30 mA
Rated Short-Circuit Capacity(400 V AC) 6 kA
Maximum Breaking Capacity6 kA
Rated Frequency (f)50 … 60 Hz
Power LossTotal 17.4 W
Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C
Resistance to Vibrations20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms
StandardsIEC/EN 60947-2, IEC/EN 61009-1
