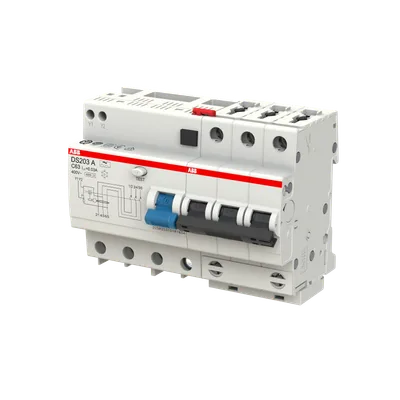

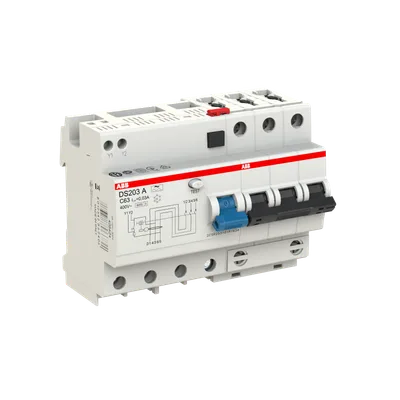

ABB 2CSR253101R1634
The RCBOs DS200 series has the function to protect against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection aganist direct contacts.
Extended Product TypeDS203 A-C63/0.03
Type of Residual CurrentType A
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
Number of Protected Poles3
Number of Poles3P
About This Product
The RCBOs DS200 series has the function to protect against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection aganist direct contacts.
ABB 2CSR253101R1634
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDS203 A-C63/0.03
Type of Residual CurrentType A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 10 kA
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
Number of Protected Poles3
Number of Poles3P
Number of Earth Leakage Circuit Breakers (ELCBs)1
Release TypeC
Accessories AvailableYes
Connecting CapacityBusbar 10 mm², Rigid 25 ... 25 mm², Flexible 25 ... 25 mm²
Short-Circuit Current Rating (SCCR)30 mA
Rated Voltage (Ur)400 V AC
Rated Operational Voltage400 V AC
Rated Current (In)63 A
Rated Residual Current30 mA
Rated Short-Circuit Capacity(400 V AC) 6 kA
Maximum Breaking Capacity6 kA
Rated Frequency (f)50 … 60 Hz
Power LossTotal 28.2 W
Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C
Resistance to Vibrations20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms
StandardsIEC/EN 60947-2, IEC/EN 61009-1
