ABB 2CSR245173R1164

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSR245173R1164

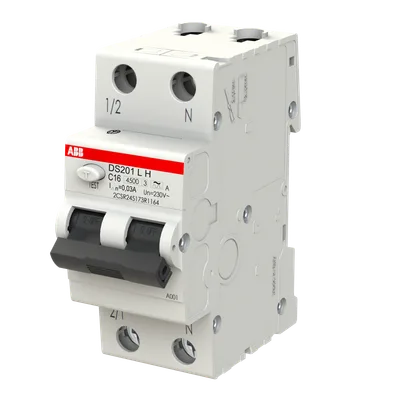

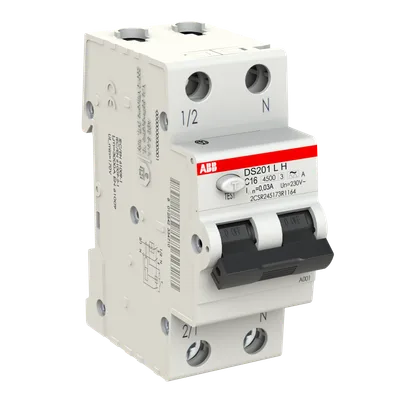

The DS201 L H series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts.

ABBMFR # 2CSR245173R1164SKU # YLSQ2IA9TY9OK
Extended Product TypeDS201 L H C16 A30
Type of Residual CurrentType A
Test Voltage (Ut)Minimum 170 V, Maximum 254 V
Dielectric Test Voltage2 kV
Maximum Surge Current0.25 kA
Power Supply ConnectionArbitrary
Share
Have questions?Chat on WhatsApp

About This Product

The DS201 L H series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts.

ABB 2CSR245173R1164

  • Genuine, certified ABB product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Extended Product TypeDS201 L H C16 A30
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 98 %, Recycled Paper - 00 %, Chemically Recycled Polymer - 00 %
Type of Residual CurrentType A
Test Voltage (Ut)Minimum 170 V, Maximum 254 V
Dielectric Test Voltage2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu)6 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)4.5 kA
Maximum Surge Current0.25 kA
Power Supply ConnectionArbitrary
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles1
Number of Poles1P+N
Number of Modular Spacings per DIN Rail2
Position of Neutral TerminalsRight
Earthing Switch TypeUndelayed
Accessories AvailableNo
Connecting CapacityFlexible 10 mm², Busbar 1 ... 25 mm², Rigid 1 ... 25 mm²
Rated Cross-Section1 - Solid-Core 25 … 25 mm², 4 - Multi-Wired 1 … 25 mm²
Rated Operational Voltageacc. to IEC 60898-1 230 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)16 A
Rated Residual Current30 mA
Rated Short-Circuit Capacity4.5 kA
Rated Conditional Short-Circuit Current (Inc)6 kA
Rated Frequency (f)50 Hz
Power LossAverage per Pole 2.3 W, Phase Pole 3.4 W, Neutral Pole 1.2 W, Total 4.5 W
Overvoltage CategoryIII
Ambient Air TemperatureOperation -5 … 55 °C
Degree of ProtectionIP2X
Pollution Degree2
Width in Number of Modular Spacings2
Built-In Depth (t2)69 mm
Mounting TypeDIN-Rail
Mounting PositionAny
StandardsEN 61009-1, EN 61009-2-1
