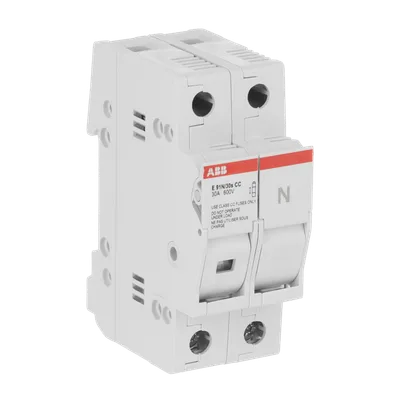

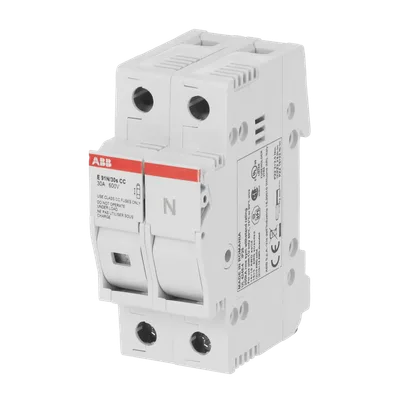

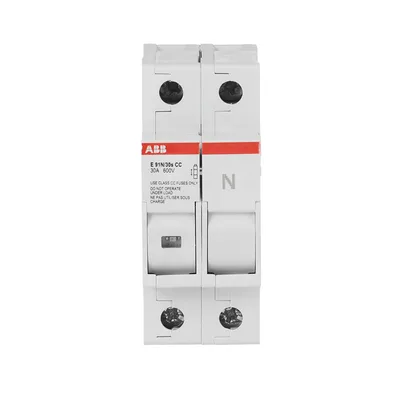

ABB 2CSM299902R1801
E 91N/30S CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses
Extended Product TypeE 91N/30s CC
Number of Protected Poles1
Number of Poles2P
Position of Neutral TerminalsRight
Tightening Torque2-2.5 N·m
Fuse Typeclass CC
About This Product
E 91N/30S CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses
ABB 2CSM299902R1801
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeE 91N/30s CC
Number of Protected Poles1
Number of Poles2P
Position of Neutral TerminalsRight
Tightening Torque2-2.5 N·m
Fuse Typeclass CC
Lock TypePadlockable
Sealing TypeSealing Wire
Material of ConductorCopper
Options ProvidedWith LED
Recommended Screw DriverPozidriv 2
Shock and Vibration Withstand acc. to IEC 61373Category 1, Class B
Connecting CapacityStranded 1x1.5…16 mm², Stranded 2x2…5 mm², Rigid 1x1.5…25 mm², Rigid 2x5 mm²
Fuse Size10x38 mm
Operating Humidity (RHamb)max. 90% at +20 °C, 50% at max. +40 °C
Rated Voltage (Ur)600 V
Rated Insulation Voltage (Ui)1+2*Un kV
Auxiliary Voltage AC/DCLED Indicator 24-1000 V AC/DC
Rated Current (In)30 A
Rated Frequency (f)60 Hz
Power LossTotal 6 W, at Rated Operating Conditions per Pole 3 W
Connecting Capacity UL/CSAStranded 1x16…3 AWG, Stranded 2x14…10 AWG, Rigid 1x16…10 AWG, Rigid 2x10 AWG
Tightening Torque UL/CSA18-22 in·lb
Ambient Air TemperatureOperation -5...+40 °C, Storage -25...+70 °C
Degree of ProtectionIP20
Resistance to Vibrations1 mm 2 … 13 Hz
Resistance to Shock acc. to IEC 60068-2-2715g 18 shocks 11 ms
Width in Number of Modular Spacings2
Built-In Depth (t2)64 mm
Mounting TypeDIN-Rail
StandardsUL 4248-1, UL 4248-4
Standardization BodyUL
