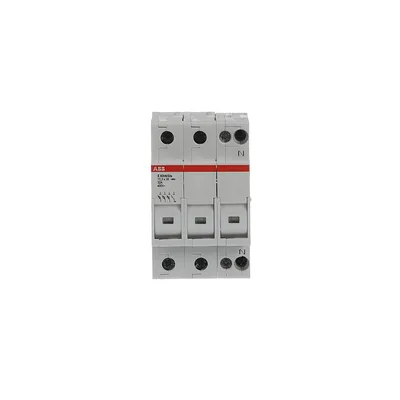

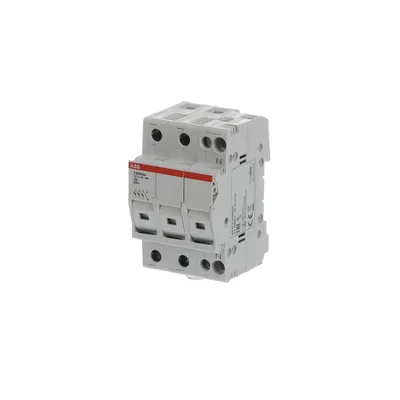

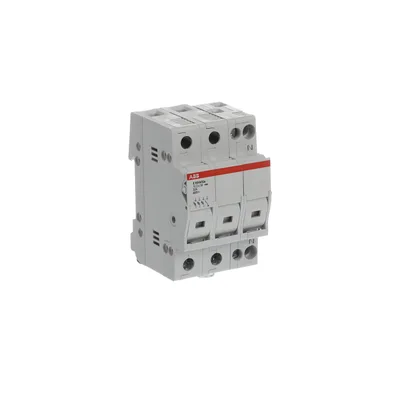

ABB 2CSM274343R1801

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSM274343R1801

E 93HN/32S is a fuseholder for overcurrent and short circuit protection. With blown fuse indicator.

ABBMFR # 2CSM274343R1801SKU # YLS41WNEGDFVI8F

Extended Product TypeE 93hN/32s

Number of Protected Poles3

Number of Poles4P

Position of Neutral TerminalsRight

Tightening Torque0.8...1.2 N·m

Fuse TypegG and aM cylindrical fuse links

Share

Have questions?Chat on WhatsApp

About This Product

E 93HN/32S is a fuseholder for overcurrent and short circuit protection. With blown fuse indicator.

ABB 2CSM274343R1801

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeE 93hN/32s

Number of Protected Poles3

Number of Poles4P

Position of Neutral TerminalsRight

Tightening Torque0.8...1.2 N·m

Fuse TypegG and aM cylindrical fuse links

Lock TypePadlockable

Sealing TypeSealing Wire

Material of ConductorCopper

Options ProvidedWith LED

Recommended Screw DriverPozidriv 2

Shock and Vibration Withstand acc. to IEC 61373Category 1, Class B

Connecting CapacityStranded 1.5…10 mm², Rigid 1.5…16 mm²

Fuse Size10x38 mm

Operating Humidity (RHamb)max. 90% at +20 °C, 50% at max. +40 °C

Rated Operational Current AC (Ie)32 A

Rated Voltage (Ur)acc. To IEC 400 V

Rated Operational Voltage690 V AC

Rated Insulation Voltage (Ui)1 kV

Auxiliary Voltage AC/DCLED Indicator 24-1000 V AC/DC

Rated Frequency (f)50/60 Hz

Power LossTotal 12 W, at Rated Operating Conditions per Pole 3 W

Ambient Air TemperatureOperation -5...+40 °C, Storage -25...+70 °C

Degree of ProtectionIP20

Maximum Operating Altitude Permissible2000 m

Resistance to Vibrations1 mm 2 … 13 Hz

Resistance to Shock acc. to IEC 60068-2-2715g 18 shocks 11 ms

Width in Number of Modular Spacings3

Built-In Depth (t2)64 mm

Mounting TypeDIN-Rail

Certification AgencyIMQ, BV, CCC, EAC

Documents & CAD

Documents 27

CertificateE90h - CCC certificatePDF·1.6 MB·English

CertificateE90/E90h/E90PV - Bureau Veritas approval certificatePDF·487 KB·English

CertificateE90/50 E90/125 - Bureau Veritas approval certificatePDF·487 KB·English

CertificateKR E90/50 E90/125 - Made in TunisiaPDF·292 KB·English

CertificateCSA E90 E90CC - Made in TunisiaPDF·136 KB·English

CertificateKR E90 - Made in TunisiaPDF·291 KB·English

CertificateE90 LCIE NF - Made in TunisiaPDF·467 KB·English

CertificateCCC,Fuse-disconnector,E90/125,Made in TunisiePDF·1.5 MB·English

CertificateCCC,Fuse-disconnector,E90/50,Made in TunisiePDF·1.5 MB·English

CertificateCCC,FUSE SWITCH DISCONNECTORS,E90,Made in TunisiePDF·2.7 MB·English

CertificateCCC Certificate,Fuse-holder,E 91hN/32, E 93hN/32, E 91hN/20,Made in TunisiePDF·1.5 MB·English

CertificateLloyd's Register Type approval E90/20, E90/32PDF·415 KB·English

CertificateE9F PV - UL certificatePDF·59 KB·English

CertificateE91/32 PV 1500e - UL certificatePDF·314 KB·English

CertificateE90 PV 1500e - CCC certificatePDF·695 KB·English

CertificateE90/125 - CCC certificatePDF·702 KB·English

CertificateE90/50 - CCC certificatePDF·703 KB·English

CertificateE90hN - CCC certificatePDF·697 KB·English

CertificateE90/20 E90/32 - CCC certificatePDF·1.1 MB·English

CertificateLloyd's Register Type approval E90/50, E90/125PDF·769 KB·English

CertificateE90/32 - IMQ approval certificatePDF·471 KB·English

CertificateE90/20 - IMQ approval certificatePDF·468 KB·English

CertificateE90hN - IMQ approval certificatePDF·470 KB·English

CertificateUL E90/60 JPDF·79 KB·English

CertificateUL E90/30 JPDF·84 KB·English

CertificateUL E90/30 CCPDF·485 KB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English
