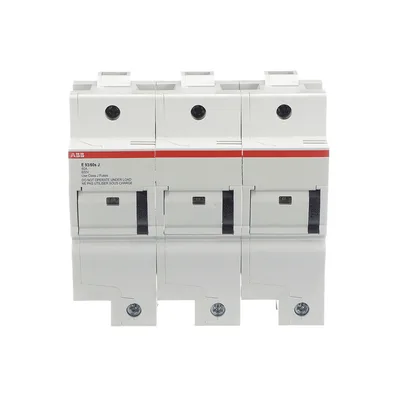

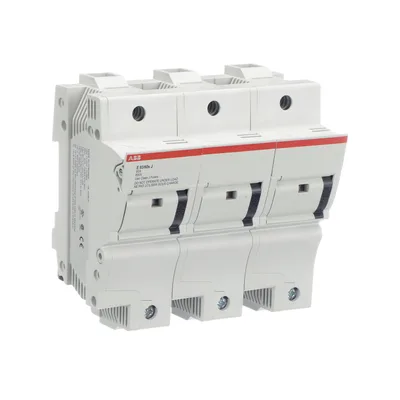

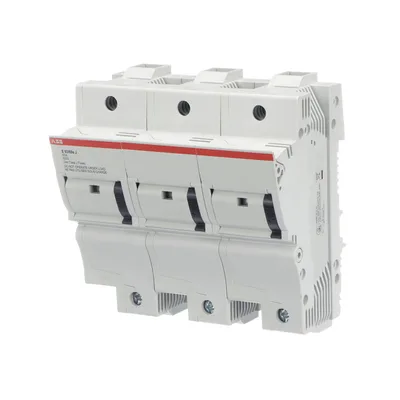

ABB 2CSM273882R1801
E 90 60 J is a fuseholder for overcurrent and short circuit protection specific for class J fuses
Extended Product TypeE 93/60s J
Suitable ForE 90
Suitable for Product ClassFuse holders
Number of Protected Poles3
Number of Poles3P
Tightening Torque3.5-4 N·m
About This Product
E 90 60 J is a fuseholder for overcurrent and short circuit protection specific for class J fuses
ABB 2CSM273882R1801
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeE 93/60s J
Suitable ForE 90
Suitable for Product ClassFuse holders
Number of Protected Poles3
Number of Poles3P
Tightening Torque3.5-4 N·m
Lock TypePadlockable
Sealing TypeSealing Wire
Material of ConductorCopper
Options ProvidedWith LED
Recommended Screw DriverPozidriv 2
Shock and Vibration Withstand acc. to IEC 61373Category 1, Class B
Fuse Size27x60 mm
Operating Humidity (RHamb)max. 90% at +20 °C, 50% at max. +40 °C
Rated Voltage (Ur)acc. to UL 600 V AC/DC
Rated Insulation Voltage (Ui)1+2*Un kV
Rated Current (In)60 A
Current Range31-60 A
Rated Frequency (f)60 Hz
Connecting Capacity UL/CSAStranded 1x14…1 AWG, Stranded 2x14…8 AWG, Rigid 1x14…10 AWG, Rigid 2x14…10 AWG
Tightening Torque UL/CSA31-35 in·lb
Ambient Air TemperatureOperation -5...+40 °C, Storage -25...+70 °C
Degree of ProtectionIP20
Maximum Operating Altitude Permissible2000 m
Resistance to Vibrations1 mm 2 … 13 Hz
Resistance to Shock acc. to IEC 60068-2-2715g 18 shocks 11 ms
Built-In Depth (t2)74.05 mm
Mounting TypeDIN-Rail
StandardsUL 4248-1, UL 4248-9
Standardization BodyUL
