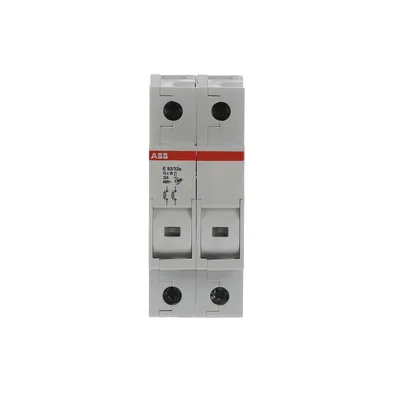

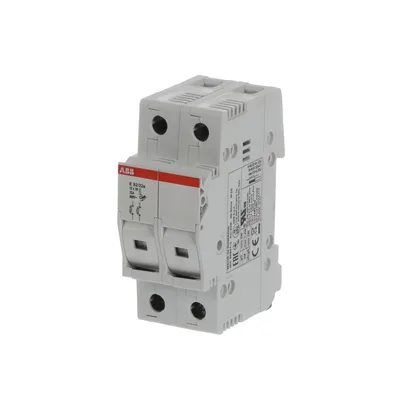

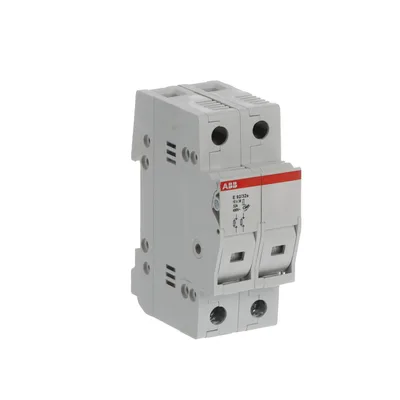

ABB 2CSM251493R1801
E 92/32S is a fuseholder for overcurrent and short circuit protection. With blown fuse indicator.
Extended Product TypeE 92/32s
Number of Protected Poles2
Number of Poles2P
Tightening Torque2...2.5 N·m
Lock TypePadlockable When Open
Sealing TypeSealing Wire
About This Product
E 92/32S is a fuseholder for overcurrent and short circuit protection. With blown fuse indicator.
ABB 2CSM251493R1801
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeE 92/32s
Number of Protected Poles2
Number of Poles2P
Tightening Torque2...2.5 N·m
Utilization CategoryConnecting and disconnecting under no-load conditions - occasional actuation (AC-20B), Switching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B)
Lock TypePadlockable When Open
Sealing TypeSealing Wire
Material of ConductorCopper
Options ProvidedWith LED
Recommended Screw DriverPozidriv 2
Shock and Vibration Withstand acc. to IEC 61373Category 1, Class B
Connecting CapacityRigid 2x5 mm², Stranded 2x2-5 mm²
Fuse Size10x38 mm
Operating Humidity (RHamb)max. 90% with temp. +20 °C, 50% with max. temp. +40 °C
Rated Operational Current AC (Ie)32 A
Rated Voltage (Ur)acc. To IEC 400 V, acc. To UL 690 V
Rated Operational VoltageAC-20B 690 V, |AC-22B 400 V
Rated Insulation Voltage (Ui)1 kV
Auxiliary Voltage AC/DCLED Indicator 24-1000 V
Rated Frequency (f)50/60 Hz
Power LossTotal 6 W, at Rated Operating Conditions per Pole 3 W
Connecting Capacity UL/CSARigid 2x10 AWG, Stranded 2x14-10 AWG
Ambient Air TemperatureOperation -5...+40 °C, Storage -25...+70 °C
Degree of ProtectionIP20
Maximum Operating Altitude Permissible2000 m
Resistance to Vibrations1 mm 2 … 13 Hz
Resistance to Shock acc. to IEC 60068-2-2715g 18 shocks 13 ms
Width in Number of Modular Spacings2
Built-In Depth (t2)64 mm
Mounting TypeDIN-Rail
StandardsIEC 60947-3
Certification AgencyIMQ, BV, Korean register, CCC, EAC
Standardization BodyUL
