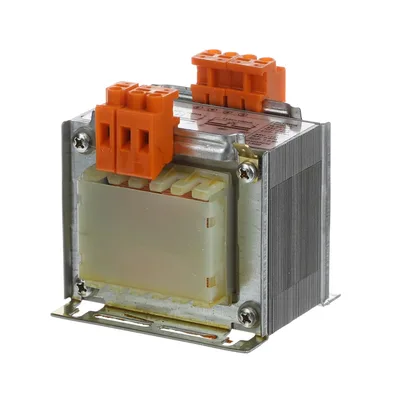

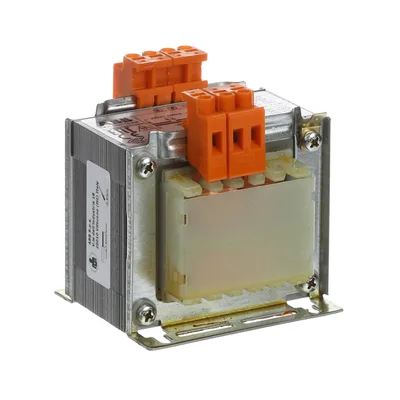

ABB 2CSM236933R0801

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSM236933R0801

Transformer for supplying control circuits, for example commands, signalling, interlocks, etc.

ABBMFR # 2CSM236933R0801SKU # YLSO6EBJYNJANZ

Extended Product TypeTM-C 100/115-230

Power Supply100 V·A

Insulation ClassF

Fuse TypeaM

Material of ConductorCopper

Cable Cross-Section6 mm²

Share

Have questions?Chat on WhatsApp

About This Product

Transformer for supplying control circuits, for example commands, signalling, interlocks, etc.

ABB 2CSM236933R0801

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeTM-C 100/115-230

Power Supply100 V·A

Insulation ClassF

Fuse TypeaM

Material of ConductorCopper

Cable Cross-Section6 mm²

Rated Insulation Voltage (Ui)3.5 kV

Primary Voltage230-400 V AC

Secondary Voltage115-230 V AC

Rated Frequency (f)50/60 Hz

Power LossTotal 15 W

Ambient Temperaturemax. 40 °C

StandardsEN 61558-2-2 , UL506 , CSA C22-2-N66

Certification AgencyENEC, UR, RINA

Standardization BodyCSA

Documents & CAD

Documents 3

CertificateIMQ Approval certificate TM-CPDF·303 KB·English

CertificateUL Certificate: TM-I, TM-S, TM-CPDF·414 KB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English
