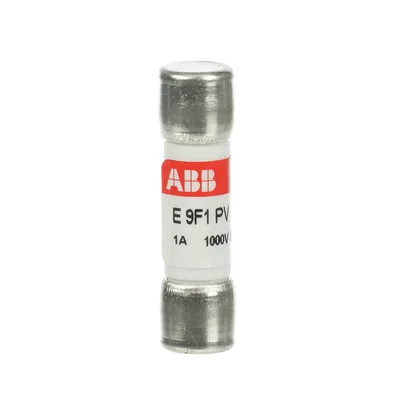

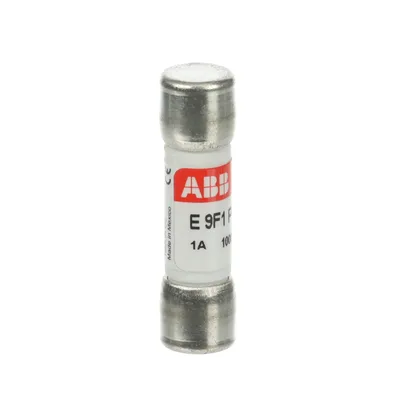

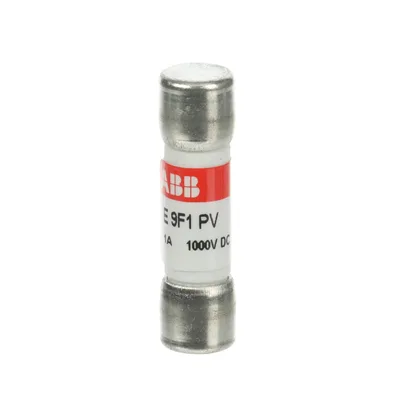

ABB 2CSM213456R1801

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSM213456R1801

E 9F1 PV is a 10,3x38 mm cylindrical fuse for photovoltaic applications

ABBMFR # 2CSM213456R1801SKU # YLSZHMCPVBUVHRN

Extended Product TypeE 9F1 PV

Fuse TypegPV

Construction MaterialGMG

Fuse Size10x38

Contact Materialcopper tin plated (Cu/Sn)

Rated Voltage (Ur)1000 V

Share

Have questions?Chat on WhatsApp

About This Product

E 9F1 PV is a 10,3x38 mm cylindrical fuse for photovoltaic applications

ABB 2CSM213456R1801

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeE 9F1 PV

Fuse TypegPV

Release TypegPV: Used in string protection of PV modules in photovoltaic applications

Construction MaterialGMG

Fuse Size10x38

Contact Materialcopper tin plated (Cu/Sn)

Rated Voltage (Ur)1000 V

Rated Current (In)1 A

Maximum Breaking Capacity50 kA

Power LossTotal 0.25 W, at Rated Operating Conditions per Pole 0.25 W

StandardsIEC 60269-6

Certification AgencyEAC

Standardization BodyUL

Documents & CAD

Documents 1

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

CAD Files 1

3D Model

STEP.step · 142 KB
