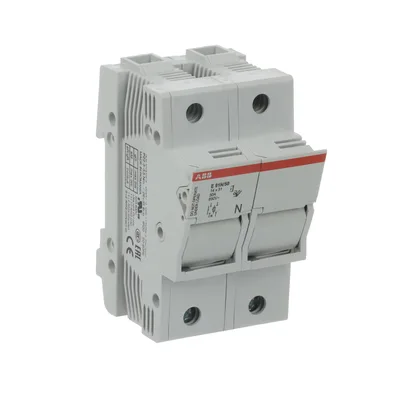

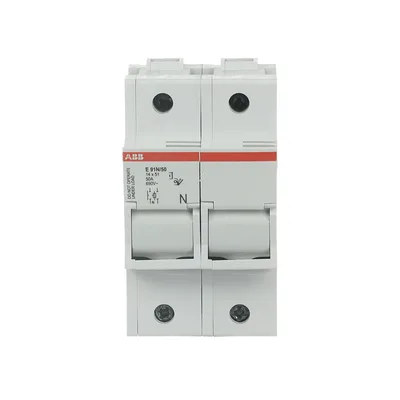

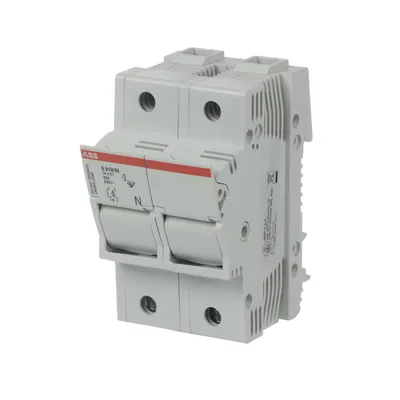

ABB 2CSM204902R1801
E 90 50/125 fuse holders are appropriate to protect against overloads and short circuits. They are designed for use with cylindrical fuses from 50 to 125 A.
Extended Product TypeE 91N/50 sx
Suitable ForE 90
Suitable for Product ClassFuse holders
Number of Protected Poles1
Number of Poles2P
Position of Neutral TerminalsLeft
About This Product
E 90 50/125 fuse holders are appropriate to protect against overloads and short circuits. They are designed for use with cylindrical fuses from 50 to 125 A.
ABB 2CSM204902R1801
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeE 91N/50 sx
Suitable ForE 90
Suitable for Product ClassFuse holders
Number of Protected Poles1
Number of Poles2P
Position of Neutral TerminalsLeft
Tightening Torque3...3.5 N·m
Utilization CategoryConnecting and disconnecting under no-load conditions - occasional actuation (AC-20B)
Lock TypePadlockable
Sealing TypeSealing Wire
Material of ConductorCopper
Options ProvidedNo
Recommended Screw DriverPozidriv 2
Connecting CapacityRigid 2.5 ... 35 mm², Stranded 2.5 ... 25 mm²
Fuse Size14x51 mm
Operating Humidity (RHamb)max. 90% with temp. +20 °C|50% with max. temp. +40 °C
Rated Operational Current AC (Ie)50 A
Rated Voltage (Ur)acc. To IEC 690 V, acc. To UL 690 V
Rated Operational VoltageAC-20B 690 V
Rated Insulation Voltage (Ui)1 kV
Rated Frequency (f)50/60 Hz
Power LossTotal 10 W, at Rated Operating Conditions per Pole 5 W
Ambient Air TemperatureOperation -5 ... +40 °C, Storage -25 ... +70 °C
Degree of ProtectionIP20
Resistance to Vibrations1 mm 2 … 13 Hz
Resistance to Shock acc. to IEC 60068-2-2715g 18 shocks 11 ms
Width in Number of Modular Spacings3
Built-In Depth (t2)73.26 mm
Mounting TypeDIN-Rail
Certification AgencyBV, Korean register, CCC, EAC
