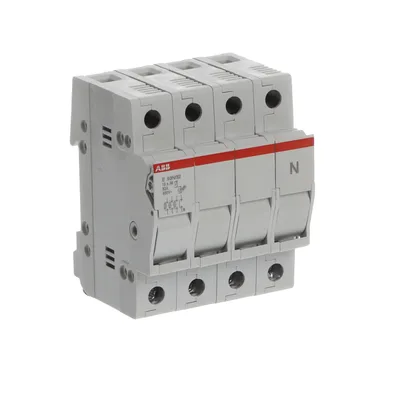

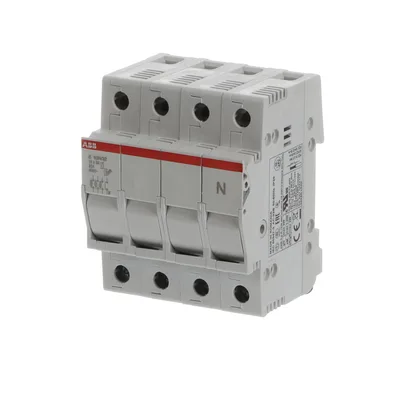

ABB 2CSM204733R1801

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSM204733R1801

E 93N/32 is a fuseholder for overcurrent and short circuit protection. No blown fuse indicator.

ABBMFR # 2CSM204733R1801SKU # YLSGQG0Q649WYSR
Extended Product TypeE 93N/32
Number of Protected Poles3
Number of Poles4P
Position of Neutral TerminalsRight
Tightening Torque2...2.5 N·m
Lock TypePadlockable When Open
Share
Have questions?Chat on WhatsApp

About This Product

E 93N/32 is a fuseholder for overcurrent and short circuit protection. No blown fuse indicator.

ABB 2CSM204733R1801

  • Genuine, certified ABB product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Extended Product TypeE 93N/32
Number of Protected Poles3
Number of Poles4P
Position of Neutral TerminalsRight
Tightening Torque2...2.5 N·m
Utilization CategoryConnecting and disconnecting under no-load conditions - occasional actuation (AC-20B), Switching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B)
Lock TypePadlockable When Open
Sealing TypeSealing Wire
Material of ConductorCopper
Options ProvidedNo
Recommended Screw DriverPozidriv 2
Shock and Vibration Withstand acc. to IEC 61373Category 1, Class B
Connecting CapacityRigid 2x5 mm², Stranded 2x2-5 mm²
Fuse Size10x38 mm
Operating Humidity (RHamb)max. 90% with temp. +20 °C, 50% with max. temp. +40 °C
Rated Operational Current AC (Ie)32 A
Rated Voltage (Ur)acc. To IEC 400 V, acc. To UL 690 V
Rated Operational VoltageAC-20B 690 V, |AC-22B 400 V
Rated Insulation Voltage (Ui)1 kV
Rated Frequency (f)50/60 Hz
Power LossTotal 12 W, at Rated Operating Conditions per Pole 3 W
Connecting Capacity UL/CSARigid 2x10 AWG, Stranded 2x14-10 AWG
Ambient Air TemperatureOperation -5...+40 °C, Storage -25...+70 °C
Degree of ProtectionIP20
Maximum Operating Altitude Permissible2000 m
Resistance to Vibrations1 mm 2 … 13 Hz
Resistance to Shock acc. to IEC 60068-2-2715g 18 shocks 13 ms
Width in Number of Modular Spacings4
Built-In Depth (t2)64 mm
Mounting TypeDIN-Rail
StandardsIEC 60947-3
Certification AgencyIMQ, BV, Korean register, CCC, EAC
Standardization BodyUL

Documents & CAD

Documents 27

CertificateE90h - CCC certificatePDF·1.6 MB·English
CertificateE90/E90h/E90PV - Bureau Veritas approval certificatePDF·487 KB·English
CertificateE90/50 E90/125 - Bureau Veritas approval certificatePDF·487 KB·English
CertificateKR E90/50 E90/125 - Made in TunisiaPDF·292 KB·English
CertificateCSA E90 E90CC - Made in TunisiaPDF·136 KB·English
CertificateKR E90 - Made in TunisiaPDF·291 KB·English
CertificateE90 LCIE NF - Made in TunisiaPDF·467 KB·English
CertificateCCC,Fuse-disconnector,E90/125,Made in TunisiePDF·1.5 MB·English
CertificateCCC,Fuse-disconnector,E90/50,Made in TunisiePDF·1.5 MB·English
CertificateCCC,FUSE SWITCH DISCONNECTORS,E90,Made in TunisiePDF·2.7 MB·English
CertificateCCC Certificate,Fuse-holder,E 91hN/32, E 93hN/32, E 91hN/20,Made in TunisiePDF·1.5 MB·English
CertificateLloyd's Register Type approval E90/20, E90/32PDF·415 KB·English
CertificateE9F PV - UL certificatePDF·59 KB·English
CertificateE91/32 PV 1500e - UL certificatePDF·314 KB·English
CertificateE90 PV 1500e - CCC certificatePDF·695 KB·English
CertificateE90/125 - CCC certificatePDF·702 KB·English
CertificateE90/50 - CCC certificatePDF·703 KB·English
CertificateE90hN - CCC certificatePDF·697 KB·English
CertificateE90/20 E90/32 - CCC certificatePDF·1.1 MB·English
CertificateLloyd's Register Type approval E90/50, E90/125PDF·769 KB·English
CertificateE90/32 - IMQ approval certificatePDF·471 KB·English
CertificateE90/20 - IMQ approval certificatePDF·468 KB·English
CertificateE90hN - IMQ approval certificatePDF·470 KB·English
CertificateUL E90/60 JPDF·79 KB·English
CertificateUL E90/30 JPDF·84 KB·English
CertificateUL E90/30 CCPDF·485 KB·English
Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English
