ABB 2CSF704957R1630

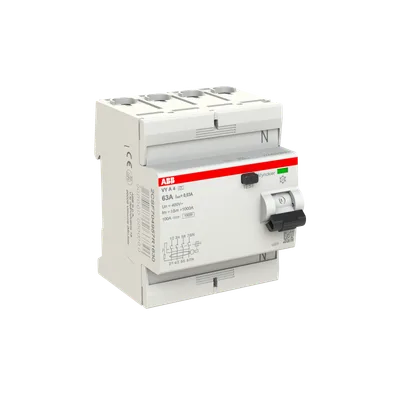

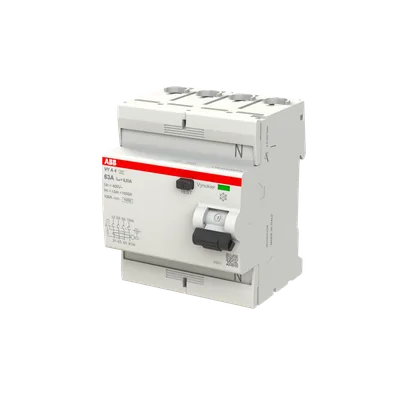

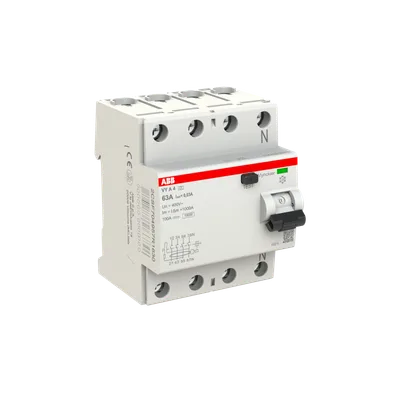

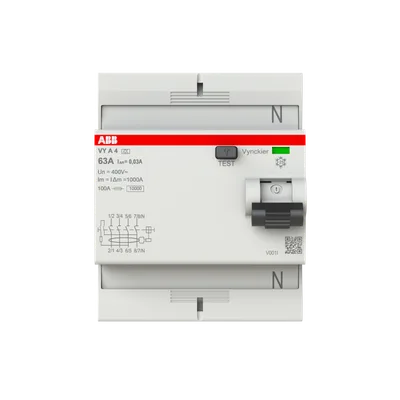

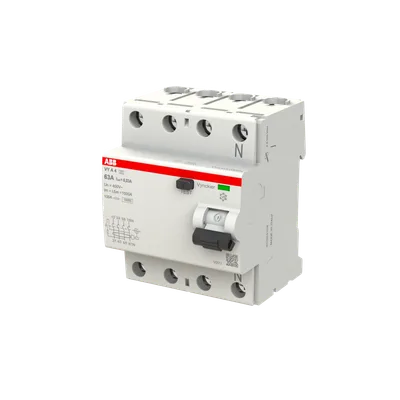

RCCB VYA 4P 30mA 63A PN Residual Current Circuit Breaker
Extended Product TypeVYA463/030PN
Type of Residual CurrentType A
Maximum Surge Current0.25 kA
Leakage Current TypeA
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
About This Product
ABB 2CSF704957R1630 (RCCB VYA 4P 30mA 63A PN Residual Current Circuit Breaker) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for ABB 2CSF704957R1630 — price, stock availability and technical specifications.
ABB 2CSF704957R1630
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeVYA463/030PN
Sustainable Material Content in Packaging (wt. %)FSC Recycled Paper - 78 %
Type of Residual CurrentType A
Rated Service Short-Circuit Breaking Capacity (Ics)1 kA
Maximum Surge Current0.25 kA
Leakage Current TypeA
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
Number of Poles4P
Position of Neutral TerminalsRight
Screw Terminal TypeFailsafe Biconnect Fork Top/Bottom
Accessories AvailableYes
Rated Voltage (Ur)230...400 V AC
Rated Operational Voltage230...400 V AC
Rated Insulation Voltage (Ui)500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)63 A
Rated Residual Current30 mA
Rated Conditional Short-Circuit Current (Inc)10 kA
Rated Frequency (f)50 Hz
Ambient Air TemperatureOperation -25 ... +40 °C, Storage -40 ... +70 °C
Degree of ProtectionIP20
Pollution Degree2
Width in Number of Modular Spacings4
Built-In Depth (t2)69 mm
Mounting TypeDIN-Rail
StandardsIEC/EN 61008-1
