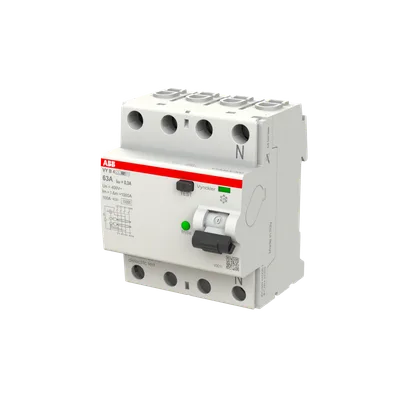

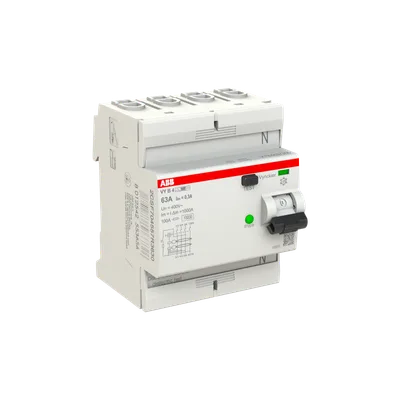

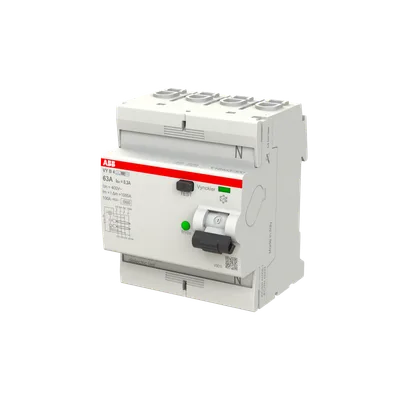

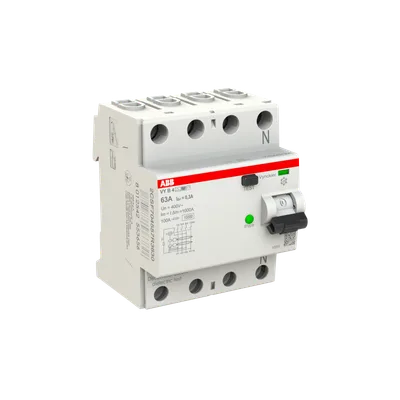

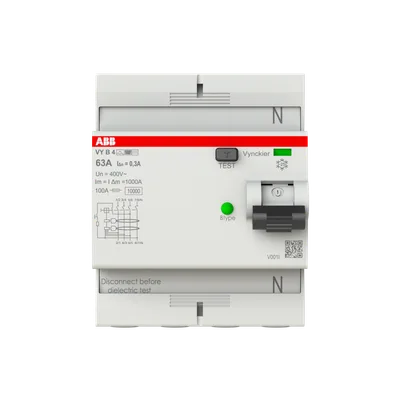

ABB 2CSF704557R3630

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSF704557R3630

VY ABB VY RCCBs assures protection against leakage currents. They are avaialble in A, A-S, B types, 2P/4P configurations, 10/30/300mA sensitivities, up to 63A complying IEC/EN 61008 Standard. Accessoriable range displaying the fork slot access on top/bottom sides on A, A-S types.

ABBMFR # 2CSF704557R3630SKU # YLSNB7QGRSBLYVI

Extended Product TypeVYB463/300

Type of Residual CurrentType B

Maximum Surge Current3 kA

Leakage Current TypeB

Power Supply ConnectionArbitrary

Electrical Endurance10000 cycle

Share

Have questions?Chat on WhatsApp

About This Product

VY ABB VY RCCBs assures protection against leakage currents. They are avaialble in A, A-S, B types, 2P/4P configurations, 10/30/300mA sensitivities, up to 63A complying IEC/EN 61008 Standard. Accessoriable range displaying the fork slot access on top/bottom sides on A, A-S types.

ABB 2CSF704557R3630

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeVYB463/300

Sustainable Material Content in Packaging (wt. %)Recycled Paper - 78 %

Type of Residual CurrentType B

Rated Service Short-Circuit Breaking Capacity (Ics)1 kA

Maximum Surge Current3 kA

Leakage Current TypeB

Power Supply ConnectionArbitrary

Electrical Endurance10000 cycle

Number of Poles4P

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Accessories AvailableYes

Connecting CapacitySolid 1 ... 25 mm², Flexible 1 ... 25 mm²

Rated Voltage (Ur)230...400 V AC

Rated Operational Voltage230...400 V AC

Rated Insulation Voltage (Ui)440 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)63 A

Rated Residual Current300 mA

Rated Conditional Short-Circuit Current (Inc)(Typ gG/gLfuse, 500 V) 100 A, Selective MCB S750-E 63A or S750DR-E/K 100 A

Rated Frequency (f)50 Hz

Ambient Air TemperatureOperation -25 ... +40 °C, Storage -40 ... +70 °C

Reference Ambient Air Temperature-25…55 °C

Degree of ProtectionIP20

Pollution Degree3

Width in Number of Modular Spacings4

Built-In Depth (t2)69 mm

Mounting TypeDIN-Rail

StandardsEN 62423/VDE 0664-40

Documents & CAD

Documents 7

CertificatePEP ecopassport - F200, VY, FXPDF·241 KB·English

CertificateCEBEC Approval VY ABB VynckierPDF·4.6 MB·English

Instruction ManualF200 B and VY-B InstructionPDF·14.0 MB·English

Instruction ManualInstruction manual ABB VYA VYS DS RCCBPDF·628 KB·English

Technical DrawingABB VYB DS Type B RCCB 2D dimensional drawingPDF·244 KB·English

Technical DrawingABB VY DS 4P RCCB 2D dimensional drawingPDF·313 KB·English

Technical DrawingABB VY DS 2P RCCB 2D dimensional drawingPDF·293 KB·English

CAD Files 6

3D Model

2D Drawing
