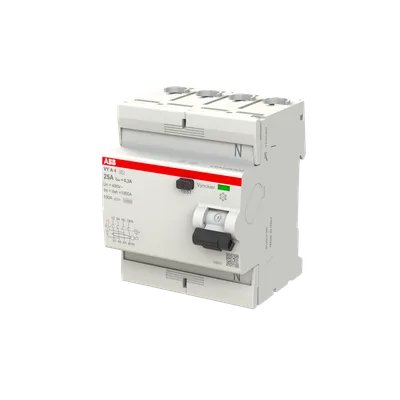

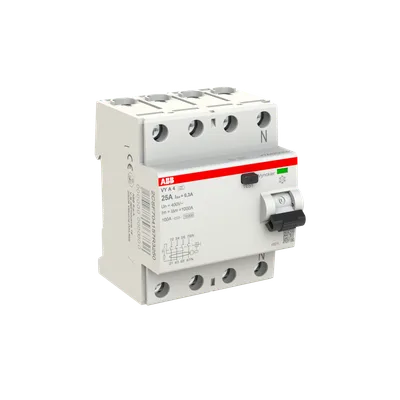

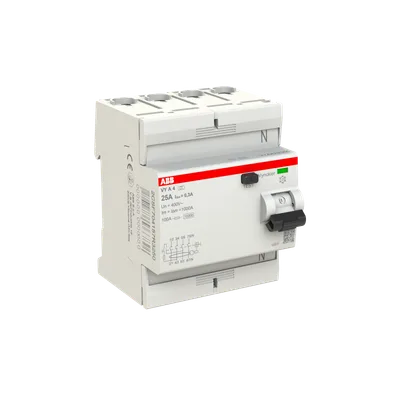

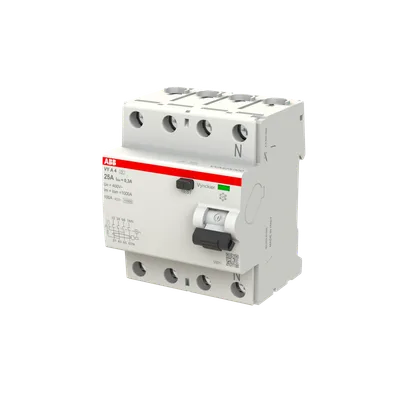

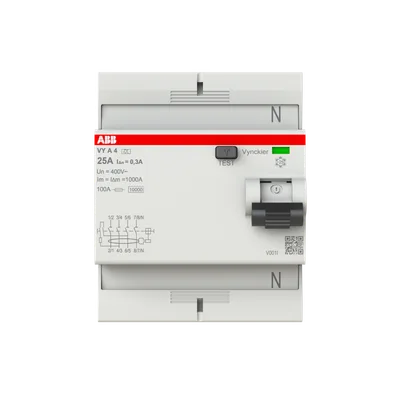

ABB 2CSF704157R3250

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSF704157R3250

VY ABB VY RCCBs assures protection against leakage currents. They are avaialble in A, A-S, B types, 2P/4P configurations, 10/30/300mA sensitivities, up to 63A complying IEC/EN 61008 Standard. Accessoriable range displaying the fork slot access on top/bottom sides on A, A-S types.

ABBMFR # 2CSF704157R3250SKU # YLSVQNTEEDFY3
Extended Product TypeVYA425/300
Type of Residual CurrentType A
Maximum Surge Current0.25 kA
Leakage Current TypeA
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
Share
Have questions?Chat on WhatsApp

About This Product

VY ABB VY RCCBs assures protection against leakage currents. They are avaialble in A, A-S, B types, 2P/4P configurations, 10/30/300mA sensitivities, up to 63A complying IEC/EN 61008 Standard. Accessoriable range displaying the fork slot access on top/bottom sides on A, A-S types.

ABB 2CSF704157R3250

  • Genuine, certified ABB product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Extended Product TypeVYA425/300
Sustainable Material Content in Packaging (wt. %)FSC Recycled Paper - 78 %
Type of Residual CurrentType A
Rated Service Short-Circuit Breaking Capacity (Ics)1 kA
Maximum Surge Current0.25 kA
Leakage Current TypeA
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
Number of Poles4P
Screw Terminal TypeFailsafe Biconnect Fork Top/Bottom
Accessories AvailableYes
Connecting CapacitySolid 0.75 ... 35 mm², Flexible 0.75 ... 35 mm², Flexible with Ferrule 0.75 ... 25 mm², Busbar Fork 10…16 mm²
Rated Voltage (Ur)230...400 V AC
Rated Operational Voltage230...400 V AC
Rated Insulation Voltage (Ui)500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)25 A
Rated Residual Current300 mA
Rated Conditional Short-Circuit Current (Inc)10 kA
Rated Frequency (f)50 Hz
Ambient Air TemperatureOperation -25 ... +40 °C, Storage -40 ... +70 °C
Degree of ProtectionIP20
Pollution Degree3
Width in Number of Modular Spacings4
Built-In Depth (t2)69 mm
Mounting TypeDIN-Rail
StandardsIEC/EN 61008-1

Documents & CAD

Documents 7

CertificatePEP ecopassport - F200, VY, FXPDF·241 KB·English
CertificateCEBEC Approval VY ABB VynckierPDF·4.6 MB·English
Instruction ManualF200 B and VY-B InstructionPDF·14.0 MB·English
Instruction ManualInstruction manual ABB VYA VYS DS RCCBPDF·628 KB·English
Technical DrawingABB VYB DS Type B RCCB 2D dimensional drawingPDF·244 KB·English
Technical DrawingABB VY DS 4P RCCB 2D dimensional drawingPDF·313 KB·English
Technical DrawingABB VY DS 2P RCCB 2D dimensional drawingPDF·293 KB·English
