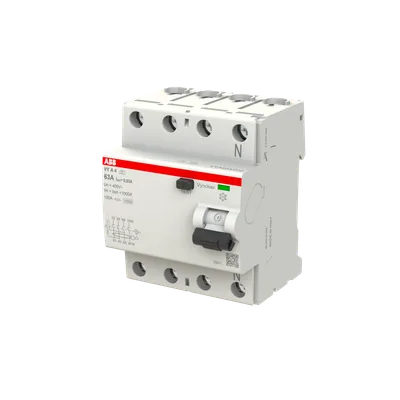

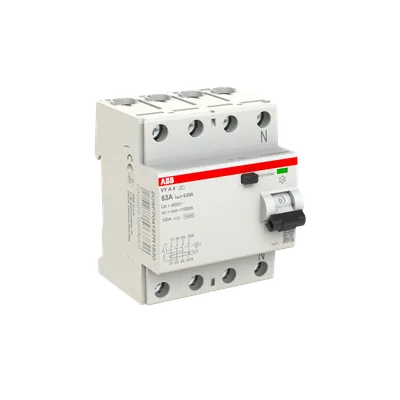

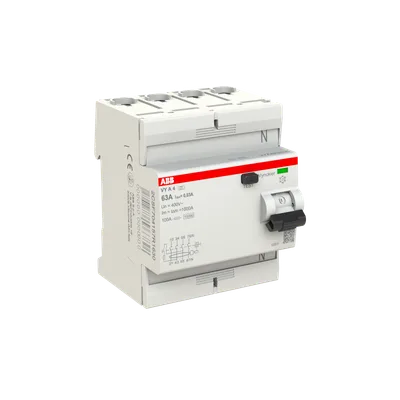

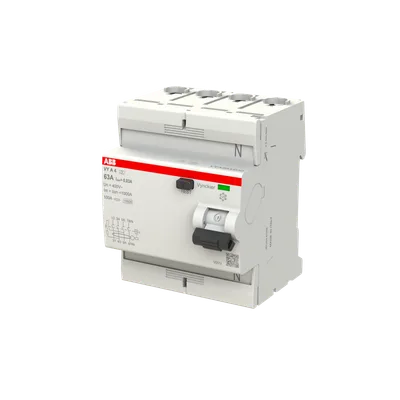

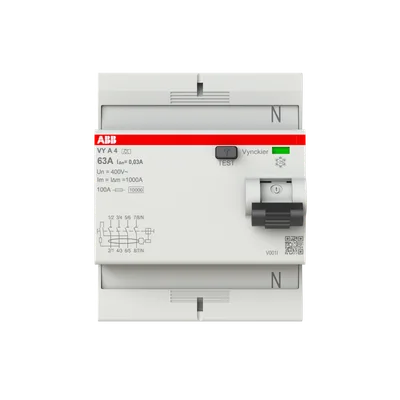

ABB 2CSF704157R1630
VY ABB VY RCCBs assures protection against leakage currents. They are avaialble in A, A-S, B types, 2P/4P configurations, 10/30/300mA sensitivities, up to 63A complying IEC/EN 61008 Standard. Accessoriable range displaying the fork slot access on top/bottom sides on A, A-S types.
Extended Product TypeVYA463/030
Type of Residual CurrentType A
Maximum Surge Current0.25 kA
Leakage Current TypeA
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
About This Product
VY ABB VY RCCBs assures protection against leakage currents. They are avaialble in A, A-S, B types, 2P/4P configurations, 10/30/300mA sensitivities, up to 63A complying IEC/EN 61008 Standard. Accessoriable range displaying the fork slot access on top/bottom sides on A, A-S types.
ABB 2CSF704157R1630
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeVYA463/030
Sustainable Material Content in Packaging (wt. %)FSC Recycled Paper - 78 %
Type of Residual CurrentType A
Rated Service Short-Circuit Breaking Capacity (Ics)1 kA
Maximum Surge Current0.25 kA
Leakage Current TypeA
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
Number of Poles4P
Screw Terminal TypeFailsafe Biconnect Fork Top/Bottom
Accessories AvailableYes
Connecting CapacitySolid 0.75 ... 35 mm², Flexible 0.75 ... 35 mm², Flexible with Ferrule 0.75 ... 25 mm², Busbar Fork 10…16 mm²
Rated Voltage (Ur)230...400 V AC
Rated Operational Voltage230...400 V AC
Rated Insulation Voltage (Ui)500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)63 A
Rated Residual Current30 mA
Rated Conditional Short-Circuit Current (Inc)10 kA
Rated Frequency (f)50 Hz
Ambient Air TemperatureOperation -25 ... +40 °C, Storage -40 ... +70 °C
Degree of ProtectionIP20
Pollution Degree3
Width in Number of Modular Spacings4
Built-In Depth (t2)69 mm
Mounting TypeDIN-Rail
StandardsIEC/EN 61008-1
