ABB 2CSF604088R3250

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

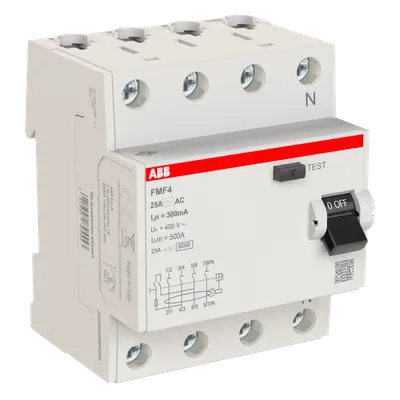

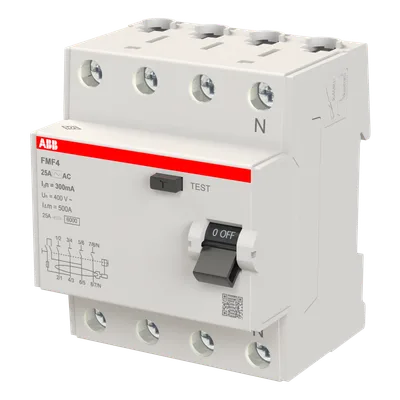

ABB 2CSF604088R3250

FMF425/AC300 Residual Current Circuit Breaker 4P Type AC 25A 300mA

ABBMFR # 2CSF604088R3250SKU # YLSCAXAPETIU5OW

Extended Product TypeFMF425/AC300

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType AC

Maximum Surge Current250 A

Leakage Current TypeAC

Electrical Endurance2000 cycle

Share

Have questions?Chat on WhatsApp

About This Product

FMF425/AC300 Residual Current Circuit Breaker 4P Type AC 25A 300mA

ABB 2CSF604088R3250

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeFMF425/AC300

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType AC

Rated Service Short-Circuit Breaking Capacity (Ics)6 kA

Maximum Surge Current250 A

Leakage Current TypeAC

Electrical Endurance2000 cycle

Mechanical Endurance5000 cycle

Number of Protected Poles4

Number of Poles4P

Tightening Torque2 N·m

Actuator TypeToggle

Actuator MarkingI / O

Recommended Screw DriverPozidriv 2

Accessories AvailableNo

Wire Stripping Length12.5 mm

Rated Voltage (Ur)400 V

Rated Operational Voltage400 V

Rated Insulation Voltage (Ui)500 V AC

Rated Impulse Withstand Voltage (Uimp)4 kV

Rated Current (In)25 A

Rated Residual Current300 mA

Rated Frequency (f)50 Hz

Ambient TemperatureOperation -5 ... +55 °C

Ambient Air TemperatureOperation -5 ... +55 °C

Degree of ProtectionIP20, Enclosure with Cover IP40

Pollution Degree2

Width in Number of Modular Spacings4

Built-In Depth (t2)69 mm

Mounting TypeDIN_Rail

StandardsIEC/EN 61008-1

Documents & CAD

Documents 11

CertificateCE Declaration: Formula India FMF RCCBPDF·43 KB·English

Instruction ManualInstruction Manual: Formula India FMF RCCBPDF·9.5 MB·English

CertificateCB test certificate: Formula India FMFPDF·257 KB·English

CertificateEnd Of Life Instruction: Formula India FMFPDF·923 KB·English

CertificateTSE-CERTIFICATE OF CONFORMITY TO TURKISH STANDARDSPDF·688 KB·English

CertificateCB certificate - FMFPDF·478 KB·English

CertificateProduct environment profile: Formula India FMFPDF·120 KB·English

Technical DrawingFormula IN with failsafe - FMF4 Dimensional drawingPDF·192 KB·English

Technical DrawingFormula IN with failsafe - FMF2 Dimensional drawingPDF·190 KB·English

Instruction ManualEnd of Life Instruction Formula DIN Rail RCCBPDF·465 KB·English

Wiring DiagramWiring Diagram - Formula FMF 4PPDF·99 KB·English

CAD Files 4

3D Model
