View Details
ABB
2CCF019935R0001
MFR #2CCF019935R0001
SKU #YLSPXMY7YROOLMJ
Photo may not represent actual item. Refer to name and product specs for all details.
ABB 2CSF604087R3250

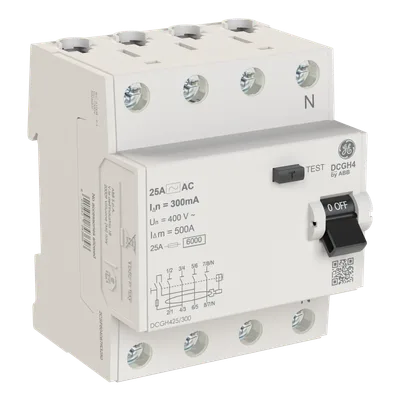

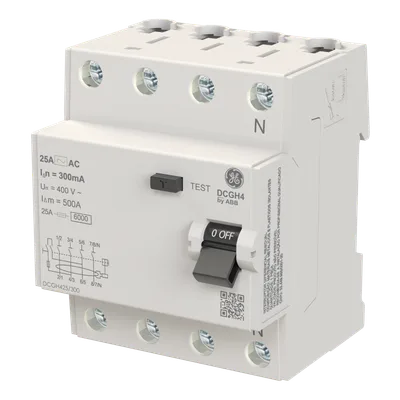

DCGH425/300 Residual Current Circuit Breaker 4P Type AC 25A 300mA
Extended Product TypeDCGH425/300
Offered with Takeback ServicesTake Back for Recycling
Type of Residual CurrentType AC
Maximum Surge Current250 A
Leakage Current TypeAC
Electrical Endurance2000 cycle
About This Product
DCGH425/300 Residual Current Circuit Breaker 4P Type AC 25A 300mA
ABB 2CSF604087R3250
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDCGH425/300
Offered with Takeback ServicesTake Back for Recycling
Type of Residual CurrentType AC
Rated Service Short-Circuit Breaking Capacity (Ics)6 kA
Maximum Surge Current250 A
Leakage Current TypeAC
Electrical Endurance2000 cycle
Mechanical Endurance5000 cycle
Number of Protected Poles4
Number of Poles4P
Tightening Torque2 N·m
Actuator TypeToggle
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableNo
Wire Stripping Length12.5 mm
Rated Voltage (Ur)400 V
Rated Operational Voltage400 V
Rated Insulation Voltage (Ui)500 V AC
Rated Impulse Withstand Voltage (Uimp)4 kV
Rated Current (In)25 A
Rated Residual Current300 mA
Rated Frequency (f)60 Hz
Ambient TemperatureOperation -5 ... +55 °C
Ambient Air TemperatureOperation -5 ... +55 °C
Degree of ProtectionIP20, Enclosure with Cover IP40
Pollution Degree2
Width in Number of Modular Spacings4
Built-In Depth (t2)69 mm
Mounting TypeDIN_Rail
StandardsIEC 61008-1
Documents & CAD
CAD Files 2
