ABB 2CSF602087R1400

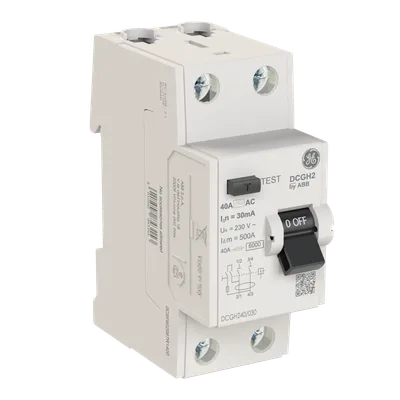

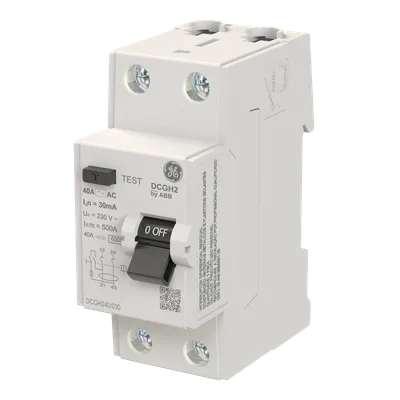

DCGH240/030 Residual Current Circuit Breaker 2P Type AC 40A 30mA
Extended Product TypeDCGH240/030
Offered with Takeback ServicesTake Back for Recycling
Type of Residual CurrentType AC
Maximum Surge Current250 A
Leakage Current TypeAC
Electrical Endurance2000 cycle
About This Product
DCGH240/030 Residual Current Circuit Breaker 2P Type AC 40A 30mA
ABB 2CSF602087R1400
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDCGH240/030
Offered with Takeback ServicesTake Back for Recycling
Type of Residual CurrentType AC
Rated Service Short-Circuit Breaking Capacity (Ics)6 kA
Maximum Surge Current250 A
Leakage Current TypeAC
Electrical Endurance2000 cycle
Mechanical Endurance5000 cycle
Number of Protected Poles2
Number of Poles2P
Tightening Torque2 N·m
Actuator TypeToggle
Actuator MarkingI / O
Recommended Screw DriverPozidriv 2
Accessories AvailableNo
Wire Stripping Length12.5 mm
Rated Voltage (Ur)230 V
Rated Operational Voltage230 V
Rated Insulation Voltage (Ui)500 V AC
Rated Impulse Withstand Voltage (Uimp)4 kV
Rated Current (In)40 A
Rated Residual Current30 mA
Rated Frequency (f)60 Hz
Ambient TemperatureOperation -5 ... +55 °C
Ambient Air TemperatureOperation -5 ... +55 °C
Degree of ProtectionIP20, Enclosure with Cover IP40
Pollution Degree2
Width in Number of Modular Spacings2
Built-In Depth (t2)69 mm
Mounting TypeDIN_Rail
StandardsIEC 61008-1
Documents & CAD
CAD Files 2
