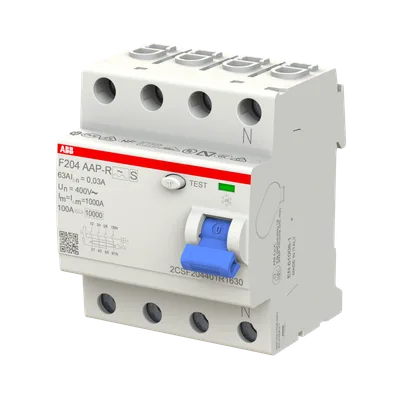

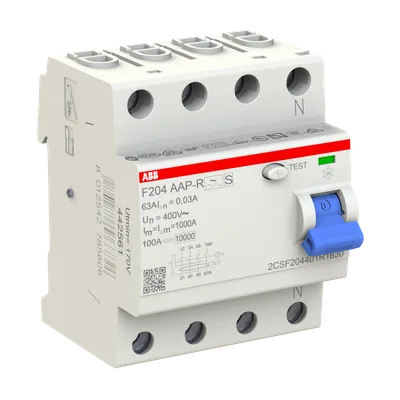

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSF204401R1630

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product provides the best compromise between safety and continuity in the service, thanks to the resistance to unwanted trippings.

ABBMFR # 2CSF204401R1630SKU # YLSXTSKQQZCCWFV

Extended Product TypeF204 A-63/0.03 AP-R

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType A APR

Test Voltage (Ut)170-254 V

Maximum Surge Current3 kA

Leakage Current TypeA

Have questions?Chat on WhatsApp

About This Product

ABB 2CSF204401R1630

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeF204 A-63/0.03 AP-R

Sustainable Material Content in Packaging (wt. %)Recycled Paper - 0 %, Recycled Paper - 3.91 %, Recycled Cardboard - 29.08 %, Recycled Cardboard - 61.23 %, Recycled Cardboard - 2.66 %

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType A APR

Test Voltage (Ut)170-254 V

Maximum Surge Current3 kA

Leakage Current TypeA

Power Supply ConnectionArbitrary

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Poles4P

Number of Modular Spacings per DIN Rail4

Position of Neutral TerminalsRight

Tightening Torque2.8 N·m

Accessory TypeAuxiliary contact, Auxiliary/Signal contact, Shunt trip, Undervoltage release, Overvoltage release, Motor Operating Device, Bottom fitting auxiliary contact, Autoreclosing Unit

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal, Cage Terminal, Failsafe Biconnect Fork Top/Bottom, Failsafe Biconnect Fork Bottom

Accessories AvailableYes

Connecting CapacityBusbar 10 mm², Rigid 25 ... 25 mm², Flexible 25 ... 25 mm²

Rated Cross-Section4 - Multi-Wired 0...25 mm², 1 - Solid-Core 25...25 mm²

Wire Stripping Length12 mm

Terminal TypeScrew Terminals

Rated Voltage (Ur)230/400 V

Rated Operational Voltage230 … 400 V AC

Rated Insulation Voltage (Ui)500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)63 A
