How can I get a price quote for ABB 2CSF204023R2250?

You can request a fast quote for ABB 2CSF204023R2250 from Yılsa Engineering. Reference part number YLSDVSWBTXWOQW8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CSF204023R2250 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CSF204023R2250 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CSF204023R2250?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

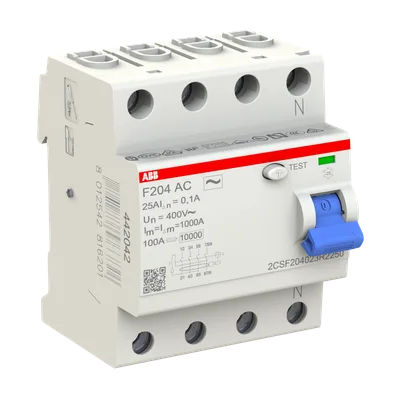

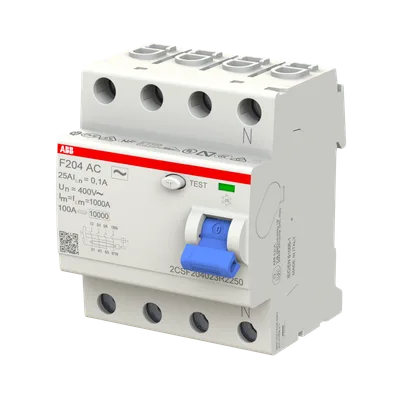

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSF204023R2250

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is suitable for installations where neutral on the left is .

ABBMFR # 2CSF204023R2250SKU # YLSDVSWBTXWOQW8

Extended Product TypeF204 AC-25/0.1-L

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType AC

Test Voltage (Ut)195-440 V

Maximum Surge Current0.25 kA

Leakage Current TypeAC

Have questions?Chat on WhatsApp

About This Product

ABB 2CSF204023R2250

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeF204 AC-25/0.1-L

Sustainable Material Content in Packaging (wt. %)Recycled Paper - 0 %, Recycled Paper - 3.91 %, Recycled Cardboard - 29.08 %, Recycled Cardboard - 61.23 %, Recycled Cardboard - 2.66 %

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType AC

Test Voltage (Ut)195-440 V

Maximum Surge Current0.25 kA

Leakage Current TypeAC

Power Supply ConnectionArbitrary

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Poles4P

Number of Modular Spacings per DIN Rail4

Position of Neutral TerminalsLeft

Tightening Torque2.8 N·m

Accessory TypeAuxiliary contact, Auxiliary/Signal contact, Shunt trip, Undervoltage release, Overvoltage release, Motor Operating Device, Bottom fitting auxiliary contact, Autoreclosing Unit

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal, Cage Terminal, Failsafe Biconnect Fork Top/Bottom, Failsafe Biconnect Fork Bottom

Accessories AvailableYes

Connecting CapacityBusbar 10 mm², Rigid 25 ... 25 mm², Flexible 25 ... 25 mm²

Rated Cross-Section4 - Multi-Wired 0...25 mm², 1 - Solid-Core 25...25 mm²

Wire Stripping Length12 mm

Terminal TypeScrew Terminals

Rated Voltage (Ur)230/400 V

Rated Operational Voltage230 … 400 V AC

Rated Insulation Voltage (Ui)500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)25 A
