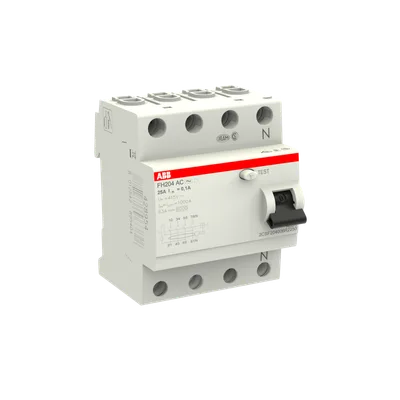

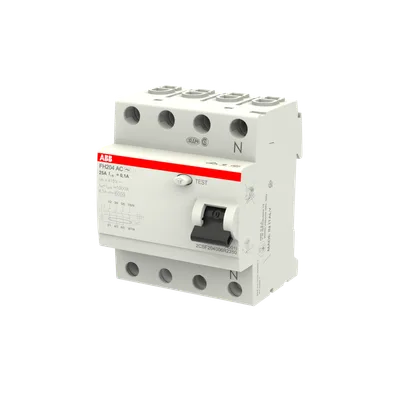

ABB 2CSF204006R2250
The RCCBs FH200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous AC and A types is particularly suitable for installation in domestic applications.
Extended Product TypeFH204 AC-25/0.1
Offered with Takeback ServicesTake Back for Recycling
Type of Residual CurrentType AC
Maximum Surge Current0.25 kA
Leakage Current TypeAC
Electrical Endurance10000 cycle
About This Product
The RCCBs FH200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous AC and A types is particularly suitable for installation in domestic applications.
ABB 2CSF204006R2250
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeFH204 AC-25/0.1
Sustainable Material Content in Packaging (wt. %)Recycled Paper - 0 %, Recycled Cardboard - 19.59 %, Recycled Cardboard - 78.37 %
Offered with Takeback ServicesTake Back for Recycling
Type of Residual CurrentType AC
Rated Service Short-Circuit Breaking Capacity (Ics)1 kA
Maximum Surge Current0.25 kA
Leakage Current TypeAC
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Poles4P
Number of Modular Spacings per DIN Rail4
Position of Neutral TerminalsRight
Accessories AvailableNo
Rated Cross-Section4 - Multi-Wired 10...25 mm², 1 - Solid-Core 25...25 mm²
Rated Voltage (Ur)230/400 V
Rated Operational Voltage230 … 400 V AC
Rated Insulation Voltage (Ui)500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Rated Current (In)25 A
Rated Residual Current100 mA
Rated Conditional Short-Circuit Current (Inc)6 kA
Rated Frequency (f)50 Hz
Power LossTotal 5.2 W, at Rated Operating Conditions per Pole 1.3 W
Number of Modules4
Ambient Air TemperatureOperation -5 ... +40 °C, Storage -40 ... +70 °C
Degree of ProtectionIP2X
Width in Number of Modular Spacings4
Built-In Depth (t2)69 mm
Mounting TypeDIN-Rail
StandardsIEC 61008
