How can I get a price quote for ABB 2CSF202568U1250?

You can request a fast quote for ABB 2CSF202568U1250 from Yılsa Engineering. Reference part number YLSFK6USJHZHAY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CSF202568U1250 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CSF202568U1250 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CSF202568U1250?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

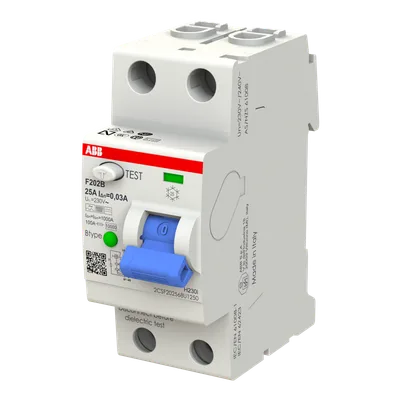

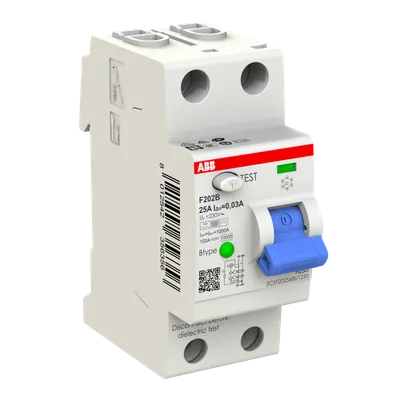

ABB 2CSF202568U1250

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents.

ABBMFR # 2CSF202568U1250SKU # YLSFK6USJHZHAY

Extended Product TypeF202 B-25/0.03 U

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType B

Test Voltage (Ut)170 ... 253 V

Dielectric Test Voltage2500 kV

Impulse CurrentI (max, 8 / 20 µs) 3000 A

Have questions?Chat on WhatsApp

About This Product

ABB 2CSF202568U1250

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeF202 B-25/0.03 U

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 29.08 %, Recycled Cardboard - 61.23 %, Recycled Cardboard - 2.66 %, Recycled Paper - 0 %, Recycled Paper - 0 %

Offered with Takeback ServicesTake Back for Recycling

Type of Residual CurrentType B

Test Voltage (Ut)170 ... 253 V

Dielectric Test Voltage2500 kV

Impulse CurrentI (max, 8 / 20 µs) 3000 A

Maximum Surge Current3 kA

Leakage Current TypeB

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Poles2P

Number of Modular Spacings per DIN Rail2

Tightening Torque2.8 N·m

Delay Time (τ)10 ms

Accessory TypeAuxiliary contact, Signal contact/auxiliary contact, Shunt trip, Undervoltage release, Overvoltage release, Motor operating device, Auto reclosing unit

Actuator TypeToggle - Insulation group I - II, RAL 5015

Housing TypeInsulation group I - II, RAL 7035

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Options ProvidedUnpacked

Accessories AvailableYes

Cable Size25 mm²

Connecting CapacityBusbar 10 mm², Flexible 1 ... 25 mm², Stranded 1 ... 25 mm²

Rated Cross-Section1 - Solid-Core 1 ... 25 mm²

Wire Stripping Length12 mm

Terminal TypeScrew Terminals

Rated Voltage (Ur)230 V

Rated Operational Voltage230 V AC
