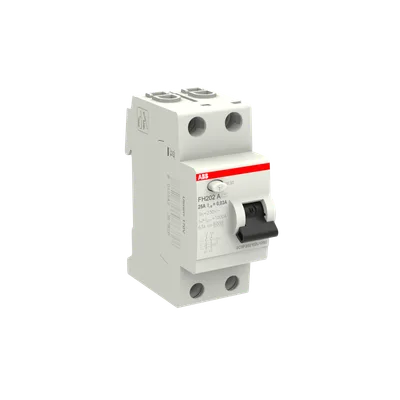

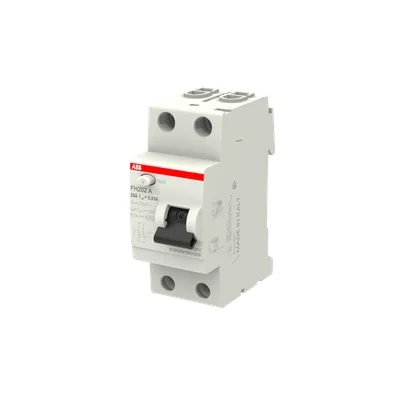

ABB 2CSF202162U1250
The RCCBs FH200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous AC and A types is particularly suitable for installation in domestic applications.
Extended Product TypeFH202 A-25/0.03 U
Offered with Takeback ServicesTake Back for Recycling
Type of Residual CurrentType A
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
About This Product
The RCCBs FH200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous AC and A types is particularly suitable for installation in domestic applications.
ABB 2CSF202162U1250
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeFH202 A-25/0.03 U
Sustainable Material Content in Packaging (wt. %)Recycled Paper - 0 %, Recycled Cardboard - 19.59 %, Recycled Cardboard - 78.37 %
Offered with Takeback ServicesTake Back for Recycling
Type of Residual CurrentType A
Rated Service Short-Circuit Breaking Capacity (Ics)1 kA
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles2
Number of Poles2P
Number of Modular Spacings per DIN Rail2
Options ProvidedUnpacked
Accessories AvailableNo
Connecting CapacityBusbar 10 mm², Rigid 25 …25 mm², Flexible 25 …25 mm²
Rated Operational Voltage230 V AC
Rated Insulation Voltage (Ui)500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Rated Current (In)25 A
Rated Residual Current30 mA
Rated Conditional Short-Circuit Current (Inc)6 kA
Rated Frequency (f)50 Hz
Power LossTotal 1 W
Number of Modules2
Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C
Degree of ProtectionTerminals IP20, Housing IP40
Width in Number of Modular Spacings2
Built-In Depth (t2)69 mm
Mounting TypeDIN-Rail
StandardsIEC/EN 61008
