ABB 2CSB204701R1630

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSB204701R1630

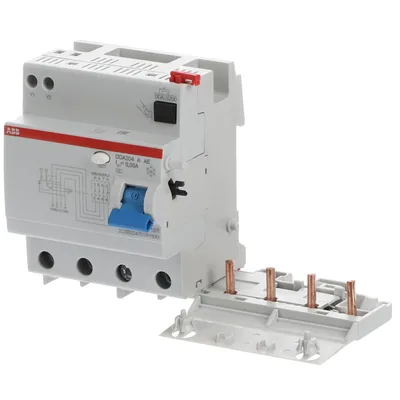

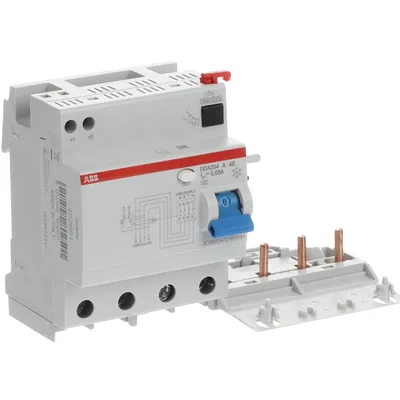

The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. It is provided with two additional contacts to be used in emergency circuits for remote opening in positive safety. Applications: commercial, industrial.

ABBMFR # 2CSB204701R1630SKU # YLSMBXRMVXC6KEU

Extended Product TypeDDA204 A-63/0.03 AE

Type of Residual CurrentType A

ApplicationFor emergency stop

Leakage Current TypeA

Power Supply ConnectionArbitrary

Electrical Endurance10000 cycle

Share

Have questions?Chat on WhatsApp

About This Product

The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. It is provided with two additional contacts to be used in emergency circuits for remote opening in positive safety. Applications: commercial, industrial.

ABB 2CSB204701R1630

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDDA204 A-63/0.03 AE

Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 85.84 %, Recycled Paper - 0 %, Recycled Paper - 0 %

Type of Residual CurrentType A

ApplicationFor emergency stop

Leakage Current TypeA

Power Supply ConnectionArbitrary

Electrical Endurance10000 cycle

Number of Poles4P

Number of Modular Spacings per DIN Rail8

Options ProvidedFor emergency stop

Connecting CapacityRigid 25 ... 25 mm², Flexible 25 ... 25 mm²

Short-Circuit Current Rating (SCCR)0.03 ... 0.03 A

Rated Voltage (Ur)230/400 V

Rated Operational Voltage230/400 V

Rated Insulation Voltage (Ui)500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Rated Current (In)63 A

Rated Residual Current30 mA

Rated Frequency (f)50 … 60 Hz

Power LossTotal 7.6 W

Number of Modules8

Ambient Temperature-25...55 °C

Ambient Air TemperatureOperation -25...55 °C

Degree of ProtectionIP2X

Resistance to Vibrations20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz

Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms

StandardsIEC/EN 61009 Ann. G
