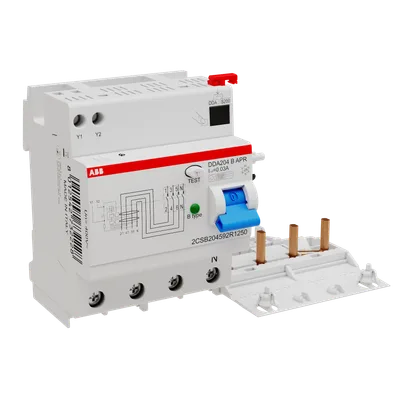

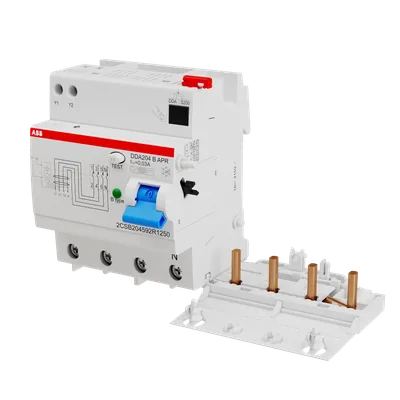

ABB 2CSB204592R1250
The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. Type B is also sensitive to continuous current pulsating earth fault currents. They are used for protection in installations with electronic equipment according to EN 50178. Applications: tertiary and industrial.
Extended Product TypeDDA204 B-25/0.03 AP-R
Type of Residual CurrentType B
Maximum Surge Current3 kA
Leakage Current TypeB
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
About This Product
The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. Type B is also sensitive to continuous current pulsating earth fault currents. They are used for protection in installations with electronic equipment according to EN 50178. Applications: tertiary and industrial.
ABB 2CSB204592R1250
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDDA204 B-25/0.03 AP-R
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 85.84 %, Recycled Paper - 0 %, Recycled Paper - 0 %
Type of Residual CurrentType B
Maximum Surge Current3 kA
Leakage Current TypeB
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
Number of Poles4P
Number of Modular Spacings per DIN Rail8
Connecting CapacityRigid 16 ... 16 mm², Flexible 16 ... 16 mm²
Short-Circuit Current Rating (SCCR)0.03 ... 0.03 A
Rated Voltage (Ur)230...400 V
Rated Operational Voltage230/400 V
Rated Insulation Voltage (Ui)500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Rated Current (In)25 A
Rated Residual Current30 mA
Rated Frequency (f)50 … 60 Hz
Power LossTotal 3 W
Number of Modules8
Ambient Temperature-25...55 °C
Ambient Air TemperatureOperation -25...55 °C
Degree of ProtectionIP2X
Resistance to Vibrations20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms
StandardsIEC/EN 61009 Ann. G, IEC/EN 62423
