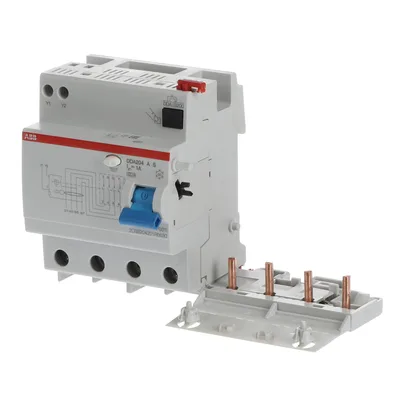

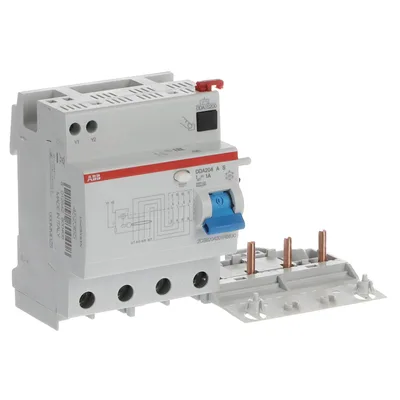

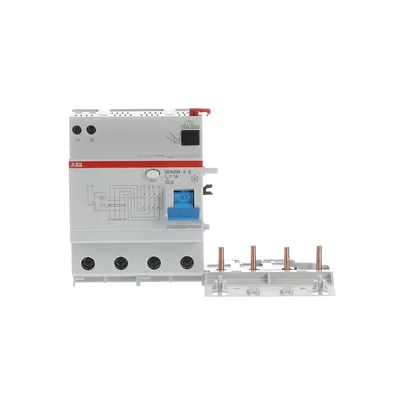

ABB 2CSB204201R5630
The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents with an intentional tripping delay, in order to realize the selectivity with downstream instantaneous devices. Applications: commercial, industrial.
Extended Product TypeDDA204 A S-63/1
Type of Residual CurrentType A
Maximum Surge Current5 kA
Leakage Current TypeA
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
About This Product
The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents with an intentional tripping delay, in order to realize the selectivity with downstream instantaneous devices. Applications: commercial, industrial.
ABB 2CSB204201R5630
- Genuine, certified ABB product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Extended Product TypeDDA204 A S-63/1
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 85.84 %, Recycled Paper - 0 %, Recycled Paper - 0 %
Type of Residual CurrentType A
Maximum Surge Current5 kA
Leakage Current TypeA
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
Number of Poles4P
Number of Modular Spacings per DIN Rail8
Connecting CapacityRigid 25 ... 25 mm², Flexible 25 ... 25 mm²
Short-Circuit Current Rating (SCCR)1...1 A
Rated Voltage (Ur)230/400 V
Rated Operational Voltage230/400 V
Rated Insulation Voltage (Ui)500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Rated Current (In)63 A
Rated Residual Current1000 mA
Rated Frequency (f)50 … 60 Hz
Power LossTotal 7.6 W
Number of Modules8
Ambient Temperature-25...55 °C
Ambient Air TemperatureOperation -25...55 °C
Degree of ProtectionIP2X
Resistance to Vibrations20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms
StandardsIEC/EN 61009 Ann. G
