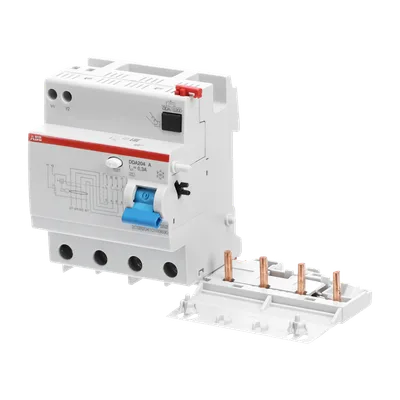

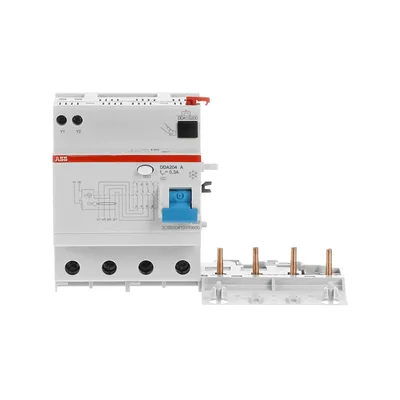

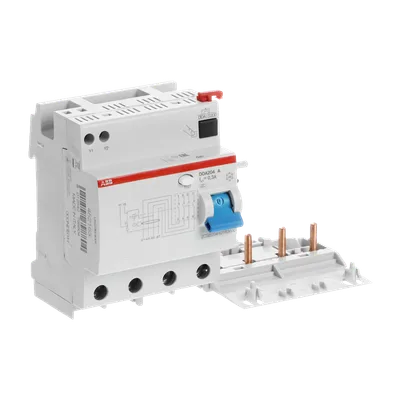

ABB 2CSB204101R3630

Photo may not represent actual item. Refer to name and product specs for all details.

ABB 2CSB204101R3630

The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial.

ABBMFR # 2CSB204101R3630SKU # YLSJHJGCUS4PGQW
Extended Product TypeDDA204 A-63/0.3
Type of Residual CurrentType A
Leakage Current TypeA
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
Number of Poles4P
Share
Have questions?Chat on WhatsApp

About This Product

The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial.

ABB 2CSB204101R3630

  • Genuine, certified ABB product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Extended Product TypeDDA204 A-63/0.3
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 85.84 %, Recycled Paper - 0 %, Recycled Paper - 0 %
Type of Residual CurrentType A
Leakage Current TypeA
Power Supply ConnectionArbitrary
Electrical Endurance10000 cycle
Number of Poles4P
Number of Modular Spacings per DIN Rail8
Connecting CapacityRigid 25 ... 25 mm², Flexible 25 ... 25 mm²
Short-Circuit Current Rating (SCCR)0.3 ... 0.3 A
Rated Voltage (Ur)230/400 V
Rated Operational Voltage230/400 V
Rated Insulation Voltage (Ui)500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Rated Current (In)63 A
Rated Residual Current300 mA
Rated Frequency (f)50 … 60 Hz
Power LossTotal 7.6 W
Number of Modules8
Ambient Temperature-25...55 °C
Ambient Air TemperatureOperation -25...55 °C
Degree of ProtectionIP2X
Resistance to Vibrations20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms
StandardsIEC/EN 61009 Ann. G

Documents & CAD

Documents 11

CertificateEcosolution Product Profile DDA200 CNIIBPDF·242 KB·English
Instruction ManualDDA200 Instruction ManualPDF·5.4 MB·English
CertificateCCC Certificate,Residual current operated Circuit-breakers block,DDA200,Made in ChinaPDF·3.1 MB·English
CertificateEPD ABBG-00519-V01.01-EN - DDA200PDF·1.5 MB·English
CertificateRINA DDA200 type A 110VPDF·1.1 MB·English
CertificateCQC Certificate,Residual current operated Circuit-breakers block,DDA200,Made in ChinaPDF·1.2 MB·English
Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English
CertificateIMQ for Serie/Series DDA200 A, A S, AC, AC SPDF·539 KB·English
CertificateNF FR for Serie/Series DDA200PDF·626 KB·English
CertificateISI IL for Serie/Series DS201, DS201M, DS202M, DS203M, DS204M, DDA200PDF·1.3 MB·English
CertificateEnvinronmental Information DDA202 - RCD-blocksPDF·1.6 MB·English
