How can I get a price quote for ABB 2CSA275901R9164?

You can request a fast quote for ABB 2CSA275901R9164 from Yılsa Engineering. Reference part number YLSE5LKUYRWESD7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CSA275901R9164 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CSA275901R9164 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CSA275901R9164?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

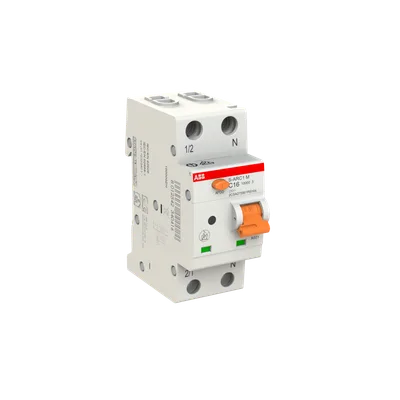

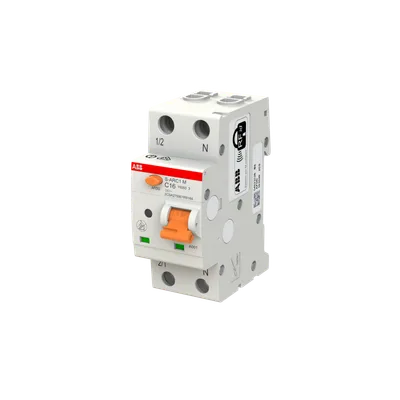

ABB 2CSA275901R9164

S-ARC1 M is a 1P+N arc fault detection device (AFDD) with an integrated MCB in two modules, for the protection against short-circuit currents, overload, earth arc faults, parallel arc faults and series arc faults.

ABBMFR # 2CSA275901R9164SKU # YLSE5LKUYRWESD7

Extended Product TypeS-ARC1 M C16

Dielectric Test Voltage2.5 kV

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Have questions?Chat on WhatsApp

About This Product

ABB 2CSA275901R9164

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS-ARC1 M C16

Dielectric Test Voltage2.5 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)10 kA

Rated Service Short-Circuit Breaking Capacity (Ics)7.5 kA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail2

Position of Neutral TerminalsRight

Tightening Torque2.8 N·m

Accessory TypeAuxiliary contact, Auxiliary/Signal contact, Shunt trip, Undervoltage release, Overvoltage release

Actuator TypeToggle - Insulation group II,Orange RAL 2004, sealable in ON-OFF-positions

Housing TypeInsulation group I, RAL 7035

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

IncludesFire protection switch

Accessories AvailableYes

Mounting Position of AccessoriesRight

Connecting CapacityBusbar 10 mm², Rigid 1…25 mm², Flexible 1…16 mm²

Wire Stripping Length12 mm

Terminal TypeScrew Terminals

Rated Operational Voltage230...240 V AC

Rated Insulation Voltage (Ui)500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)16 A

Rated Short-Circuit Capacity10 kA

Rated Frequency (f)50 Hz

Power LossTotal 2.8 W

Overvoltage CategoryIII

Number of Modules2

Ambient Air TemperatureOperation -25 ... 55 °C, Storage -40 ... 70 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionTerminals IP20, Housing IP40

Pollution Degree2

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g or 0.2mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-2730g 2 shocks 13 ms

Width in Number of Modular Spacings2

Built-In Depth (t2)69 mm

Mounting TypeDIN-Rail

Mounting PositionAny

StandardsIEC/EN 62606, IEC/EN 60898-1

Documents & CAD

Documents 14

CertificatePEP ecopassport SX-ARC1 & S-ARC1PDF·2.0 MB·English

CertificateEcosolution Product Profile S-ARC AFDD+MCBPDF·167 KB·English

CertificateKC S-ARC1 above 16APDF·154 KB·English

CertificateKC S-ARC1 20APDF·887 KB·English

CertificateKC S-ARC1 up to 16APDF·155 KB·English

CertificateIRAM S-ARC1PDF·556 KB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

DatasheetS-ARC1 - AFDD data sheetPDF·506 KB·English

CertificateVDE for S-ARC1 MPDF·316 KB·English

CertificateVDE for S-ARC1PDF·1.1 MB·English

CertificateIMQ for S-ARC1 MPDF·280 KB·English

CertificateIMQ for S-ARC1PDF·279 KB·English

Instruction ManualLED summary sticker - S-ARC1 and DS-ARC1PDF·152 KB·English

Instruction ManualMounting and operating instructions - S-ARC1PDF·287 KB·English

CAD Files 2

3D Model

IGES.igs · 11.1 MB

2D Drawing

AutoCAD DWG.dwg · 364 KB
