How can I get a price quote for ABB 2CSA275107R1164?

You can request a fast quote for ABB 2CSA275107R1164 from Yılsa Engineering. Reference part number YLSHPVDQHB76LMU. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CSA275107R1164 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CSA275107R1164 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CSA275107R1164?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

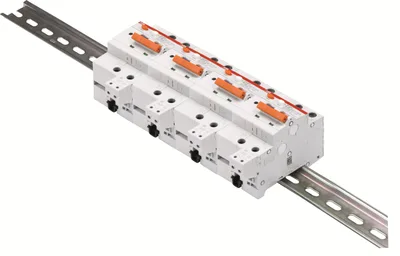

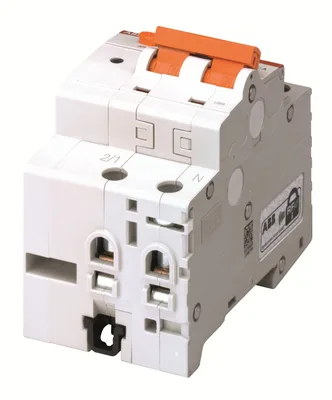

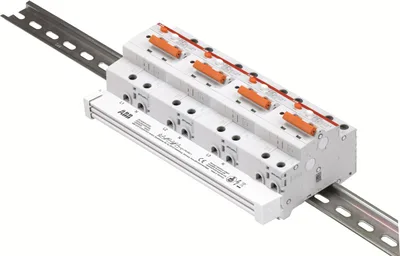

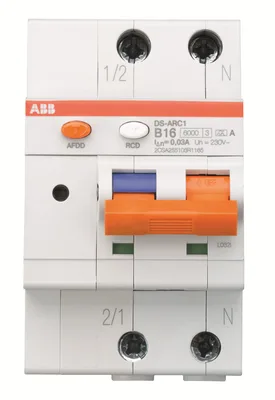

ABB 2CSA275107R1164

DS-ARC1 M is a 1P+N arc fault detection device (AFDD) with an integrated RCBO in three modules, for the protection against earth arc faults, parallel arc faults, series arc faults, overvolatge, short-circuit currents, overload, earth fault currents. Version with 240V market for AU market

ABBMFR # 2CSA275107R1164SKU # YLSHPVDQHB76LMU

Extended Product TypeDS-ARC1 M C16 A30 240V

Type of Residual CurrentType A

Test Voltage (Ut)170 … 264 V

Dielectric Test Voltage2.5 kV

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Have questions?Chat on WhatsApp

About This Product

ABB 2CSA275107R1164

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDS-ARC1 M C16 A30 240V

Type of Residual CurrentType A

Test Voltage (Ut)170 … 264 V

Dielectric Test Voltage2.5 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)10 kA

Rated Residual Breaking Capacity (IΔm)6 kA

Rated Service Short-Circuit Breaking Capacity (Ics)7.5 kA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail3

Fault IndicationBlue Flag on Toggle

Position of Neutral TerminalsRight

Tightening Torque2.8 N·m

Accessory TypeAuxiliary contact, Auxiliary/Signal contact, Shunt trip, Undervoltage release, Overvoltage release, Bottom fitting auxiliary contact

Actuator TypeToggle -Insulation group II, Orange RAL 2004, sealable in ON-OFF-positions

Housing TypeInsulation group I, RAL 7035

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Accessories AvailableYes

Connecting CapacityBusbar 10 mm², Rigid 1…25 mm², Flexible 1…16 mm²

Wire Stripping Length12 mm

Terminal TypeScrew Terminals

Rated Operational Voltage240 V AC

Rated Insulation Voltage (Ui)500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)16 A

Rated Residual Current30 mA

Rated Short-Circuit Capacity10 kA

Rated Frequency (f)50 … 60 Hz

Power LossTotal 3.1 W

Overvoltage CategoryIII

Number of Modules3

Ambient Air TemperatureOperation -25 ... 55 °C, Storage -40 ... 70 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionTerminals IP20, Housing IP40

Pollution Degree2

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g or 0.2mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-2730g 2 shocks 13 ms

Width in Number of Modular Spacings3

Built-In Depth (t2)69 mm

Mounting TypeDIN-Rail

Mounting PositionAny

StandardsIEC/EN 62606, IEC/EN 61009-1, IEC/EN 61009-2-1

Documents & CAD

Documents 13

CertificateEOL DS-ARC1PDF·466 KB·English

CertificatePEP ecopassport DS-ARC1PDF·279 KB·English

CertificateKC DS-ARC1 20APDF·831 KB·English

CertificateKC DS-ARC1 up to 16APDF·157 KB·English

CertificateRCM for DS-ARC1 240VPDF·3.9 MB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

DatasheetDS-ARC1 AFDD with integrated RCBO_Technical Data SheetPDF·614 KB·English

CertificateVDE for DS-ARC1 MPDF·273 KB·English

CertificateVDE for DS-ARC1PDF·274 KB·English

CertificateIMQ for DS-ARC1 MPDF·264 KB·English

CertificateIMQ for DS-ARC1PDF·263 KB·English

Instruction ManualMounting and operating instructions - DS-ARC1PDF·298 KB·English

Instruction ManualLED summary sticker - S-ARC1 and DS-ARC1PDF·152 KB·English

CAD Files 2

3D Model

IGES.igs · 46.5 MB

2D Drawing

AutoCAD DXF.dxf · 5.7 MB
