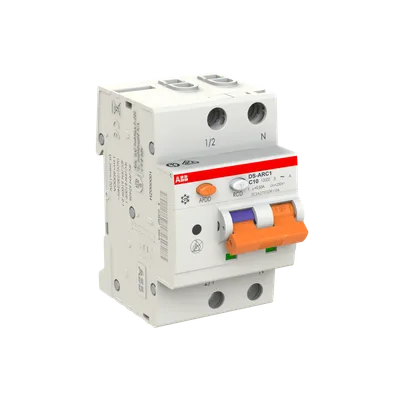

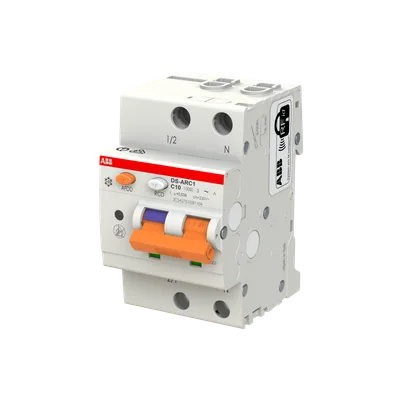

ABB 2CSA275103R1104

DS-ARC1 M is a 1P+N arc fault detection device (AFDD) with an integrated RCBO in three modules, for the protection against earth arc faults, parallel arc faults, series arc faults, overvolatge, short-circuit currents, overload, earth fault currents

ABBMFR # 2CSA275103R1104SKU # YLS3YDDLF0QDA7L

Extended Product TypeDS-ARC1 M C10 A30

Type of Residual CurrentType A

Test Voltage (Ut)170 … 264 V

Dielectric Test Voltage2.5 kV

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Have questions?Chat on WhatsApp

About This Product

ABB 2CSA275103R1104

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeDS-ARC1 M C10 A30

Type of Residual CurrentType A

Test Voltage (Ut)170 … 264 V

Dielectric Test Voltage2.5 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)10 kA

Rated Residual Breaking Capacity (IΔm)6 kA

Rated Service Short-Circuit Breaking Capacity (Ics)7.5 kA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail3

Fault IndicationBlue Flag on Toggle

Position of Neutral TerminalsRight

Tightening Torque2.8 N·m

Accessory TypeAuxiliary contact, Auxiliary/Signal contact, Shunt trip, Undervoltage release, Overvoltage release, Bottom fitting auxiliary contact

Actuator TypeToggle -Insulation group II, Orange RAL 2004, sealable in ON-OFF-positions

Housing TypeInsulation group I, RAL 7035

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

Accessories AvailableYes

Mounting Position of AccessoriesRight

Connecting CapacityBusbar 10 mm², Rigid 1…25 mm², Flexible 1…16 mm²

Wire Stripping Length12 mm

Terminal TypeScrew Terminals

Rated Operational Voltage230...240 V AC

Rated Insulation Voltage (Ui)500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)10 A

Rated Residual Current30 mA

Rated Short-Circuit Capacity10 kA

Rated Frequency (f)50 … 60 Hz

Power LossTotal 1.8 W

Overvoltage CategoryIII

Number of Modules3

Ambient Air TemperatureOperation -25 ... 55 °C, Storage -40 ... 70 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionTerminals IP20, Housing IP40

Pollution Degree2

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g or 0.2mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-2730g 2 shocks 13 ms

Width in Number of Modular Spacings3

Built-In Depth (t2)69 mm

Mounting TypeDIN-Rail

Mounting PositionAny

StandardsIEC/EN 62606, IEC/EN 61009-1, IEC/EN 61009-2-1

Documents & CAD

Documents 13

CertificateEOL DS-ARC1PDF·466 KB·English

CertificatePEP ecopassport DS-ARC1PDF·279 KB·English

CertificateKC DS-ARC1 20APDF·831 KB·English

CertificateKC DS-ARC1 up to 16APDF·157 KB·English

CertificateRCM for DS-ARC1 240VPDF·3.9 MB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

DatasheetDS-ARC1 AFDD with integrated RCBO_Technical Data SheetPDF·614 KB·English

CertificateVDE for DS-ARC1 MPDF·273 KB·English

CertificateVDE for DS-ARC1PDF·274 KB·English

CertificateIMQ for DS-ARC1 MPDF·264 KB·English

CertificateIMQ for DS-ARC1PDF·263 KB·English

Instruction ManualMounting and operating instructions - DS-ARC1PDF·298 KB·English

Instruction ManualLED summary sticker - S-ARC1 and DS-ARC1PDF·152 KB·English

CAD Files 2

3D Model

IGES.igs · 46.5 MB

2D Drawing

AutoCAD DXF.dxf · 5.7 MB
