How can I get a price quote for ABB 2CSA255908R9065?

You can request a fast quote for ABB 2CSA255908R9065 from Yılsa Engineering. Reference part number YLSCEHMHOJB3OZD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CSA255908R9065 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CSA255908R9065 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CSA255908R9065?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

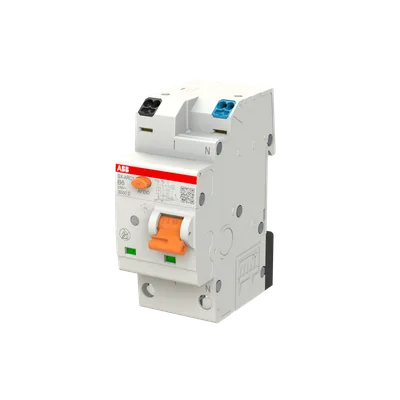

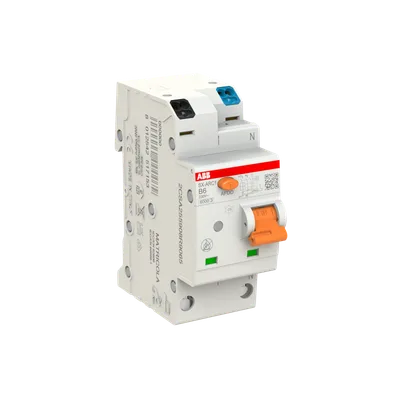

ABB 2CSA255908R9065

SX-ARC1 is a 1P+N arc fault detection device (AFDD) with an integrated MCB in two modules, for the protection against short-circuit currents, overload, earth arc faults, parallel arc faults and series arc faults. SX-ARC1 is part of the FlexLine portfolio.

ABBMFR # 2CSA255908R9065SKU # YLSCEHMHOJB3OZD

Extended Product TypeSX-ARC1 B6

Dielectric Test Voltage2.5 kV

Power Supply ConnectionBottom

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Have questions?Chat on WhatsApp

About This Product

ABB 2CSA255908R9065

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeSX-ARC1 B6

Dielectric Test Voltage2.5 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)7.5 kA

Rated Service Short-Circuit Breaking Capacity (Ics)6 kA

Power Supply ConnectionBottom

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail2

Position of Neutral TerminalsRight

Tightening Torque1.2 N·m

Accessory TypeAuxiliary contact, Auxiliary/Signal contact, Shunt trip, Undervoltage release, Overvoltage release

Actuator TypeToggle - Insulation group II, Orange RAL 2004, sealable in ON-OFF-positions

Housing TypeInsulation group I, RAL 7035

Actuator MarkingI / O

Options Providedscrewless

IncludesFire protection switch

Accessories AvailableYes

Connecting CapacityScrew Clamp / Rigid 1 … 10 mm², Screw Clamp / With Insulated Ferrrule 1 … 6 mm², Screw Clamp / Without Insulated Ferrule 1 … 6 mm², Push-in / Flexible With Insulated Ferrule 2 x 1 … 2.5 mm², Push-in / Flexible Without Insulated Ferrule 2 x 1 … 2.5 mm², Push-in / Rigid 2 x 1 … 4 mm², Screw Clamp / Flexible 1 … 10 mm²

Installation Sizeacc. to DIN 43880 1

Wire Stripping Length12 mm

Terminal TypeScrew Terminals, Push-in Spring Terminals

Rated Operational Voltage230 V AC

Rated Insulation Voltage (Ui)500 V AC

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)6 A

Rated Short-Circuit Capacity6 kA

Rated Frequency (f)50 … 60 Hz

Power LossTotal 2.3 W

Overvoltage CategoryIII
