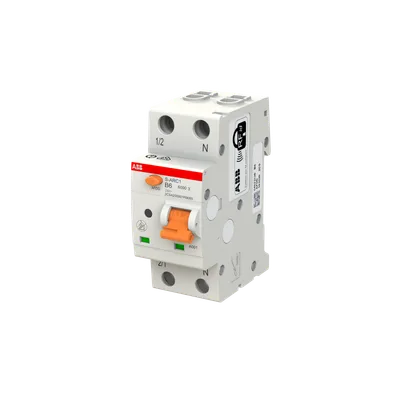

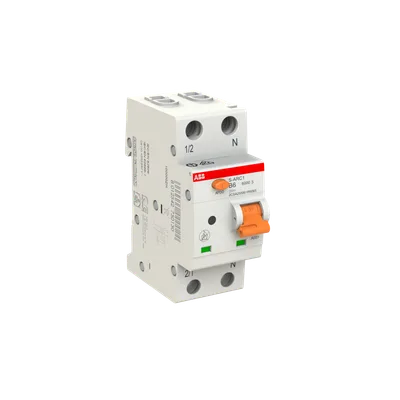

ABB 2CSA255901R9065

S-ARC1 is a 1P+N arc fault detection device (AFDD) with an integrated MCB in two modules, for the protection against short-circuit currents, overload, earth arc faults, parallel arc faults and series arc faults.

ABBMFR # 2CSA255901R9065SKU # YLSDAT09CVA89PN

Extended Product TypeS-ARC1 B6

Dielectric Test Voltage2.5 kV

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Have questions?Chat on WhatsApp

About This Product

ABB 2CSA255901R9065

Genuine, certified ABB product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Extended Product TypeS-ARC1 B6

Dielectric Test Voltage2.5 kV

Rated Ultimate Short-Circuit Breaking Capacity (Icu)7.5 kA

Rated Service Short-Circuit Breaking Capacity (Ics)6 kA

Power Supply ConnectionArbitrary

Contact Position IndicationRed ON / Green OFF

Energy Limiting Class3

Electrical Endurance10000 cycle

Mechanical Endurance20000 cycle

Number of Protected Poles1

Number of Poles1P+N

Number of Modular Spacings per DIN Rail2

Position of Neutral TerminalsRight

Tightening Torque2.8 N·m

Accessory TypeAuxiliary contact, Auxiliary/Signal contact, Shunt trip, Undervoltage release, Overvoltage release

Actuator TypeToggle - Insulation group II,Orange RAL 2004, sealable in ON-OFF-positions

Housing TypeInsulation group I, RAL 7035

Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal

IncludesFire protection switch

Accessories AvailableYes

Mounting Position of AccessoriesRight

Connecting CapacityBusbar 10 mm², Rigid 1…25 mm², Flexible 1…16 mm²

Wire Stripping Length12 mm

Terminal TypeScrew Terminals

Rated Operational Voltage230...240 V AC

Rated Insulation Voltage (Ui)500 V

Rated Impulse Withstand Voltage (Uimp)4 kV

Input Voltage TypeAC

Rated Current (In)6 A

Rated Short-Circuit Capacity6 kA

Rated Frequency (f)50 Hz

Power LossTotal 2.3 W

Overvoltage CategoryIII

Number of Modules2

Ambient Air TemperatureOperation -25 ... 55 °C, Storage -40 ... 70 °C

Reference Ambient Air Temperature30 °C

Degree of ProtectionTerminals IP20, Housing IP40

Pollution Degree2

Environmental Conditions28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %

Resistance to Vibrations20 Cycles with Load 0.8 In: 5g or 0.2mm 5 … 150 Hz

Resistance to Shock acc. to IEC 60068-2-2730g 2 shocks 13 ms

Width in Number of Modular Spacings2

Built-In Depth (t2)69 mm

Mounting TypeDIN-Rail

Mounting PositionAny

StandardsIEC/EN 62606, IEC/EN 60898-1

Documents & CAD

Documents 14

CertificatePEP ecopassport SX-ARC1 & S-ARC1PDF·2.0 MB·English

CertificateEcosolution Product Profile S-ARC AFDD+MCBPDF·167 KB·English

CertificateKC S-ARC1 above 16APDF·154 KB·English

CertificateKC S-ARC1 20APDF·887 KB·English

CertificateKC S-ARC1 up to 16APDF·155 KB·English

CertificateIRAM S-ARC1PDF·556 KB·English

Instruction ManualSafety Information - DIN RAIL ProductsPDF·335 KB·English

DatasheetS-ARC1 - AFDD data sheetPDF·506 KB·English

CertificateVDE for S-ARC1 MPDF·316 KB·English

CertificateVDE for S-ARC1PDF·1.1 MB·English

CertificateIMQ for S-ARC1 MPDF·280 KB·English

CertificateIMQ for S-ARC1PDF·279 KB·English

Instruction ManualLED summary sticker - S-ARC1 and DS-ARC1PDF·152 KB·English

Instruction ManualMounting and operating instructions - S-ARC1PDF·287 KB·English

CAD Files 2

3D Model

IGES.igs · 11.1 MB

2D Drawing

AutoCAD DWG.dwg · 364 KB
