How can I get a price quote for ABB 2CPX052618R9999?

You can request a fast quote for ABB 2CPX052618R9999 from Yılsa Engineering. Reference part number YLSIAMTWF4TWNZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is ABB 2CPX052618R9999 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is ABB 2CPX052618R9999 genuine and new?

Yes. This ABB product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for ABB 2CPX052618R9999?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

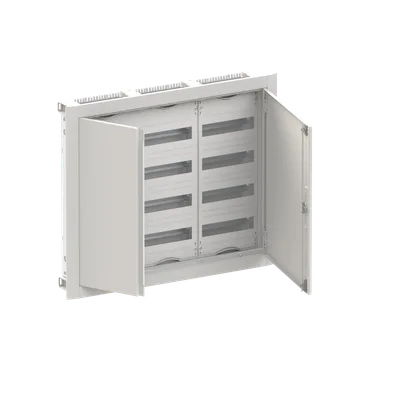

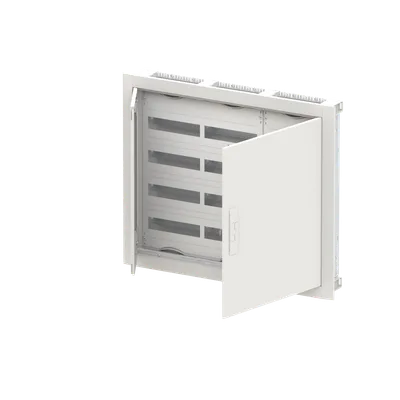

ABB 2CPX052618R9999

Compact distribution board, partly assembled cabinet, for the internal use, with closed doorframe and door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP30, applicable standards: EN 61439-1, EN 61439-3, Impact strength IK09, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, double door, door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right and left, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, dimensions in mm (H x W x D): 714 x 865 x 125, Shutter frame dimensions in mm (H x W x D): 714 x 865 x 15, 15 mm, possible plaster compensation up to 25 mm, Grid unit 4 GU, panel width 3, Space units 144, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, expanded with distributor fields, device support removable

ABBMFR # 2CPX052618R9999SKU # YLSIAMTWF4TWNZ

Extended Product TypeCU34V

Number of Rows44

Closure TypeTurn Handle

Configuration Typeexpanded with distributor fields

Cover Plate TypeDoor

Enclosure TypeCompact distribution board
